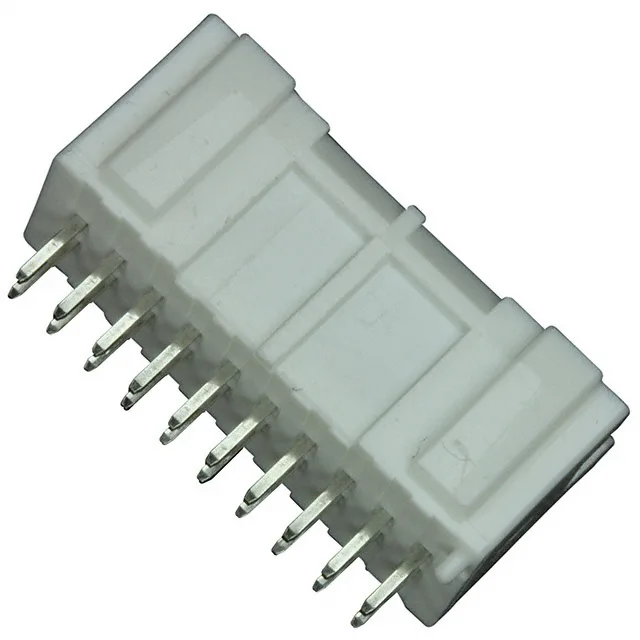

JST PAD header, order code B20B-PADSS-1(LF)(SN), 20 positions, dual row, 2.00 mm pitch, 3 A, 250 V, tin-plated mating contacts, through-hole, solder termination, shrouded - 4 wall, locking ramp.
| Parameter | Value |
|---|---|
| Series | PAD |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.402\" (10.20mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mated stacking heights | 12.4mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 20 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
The B20B-PADSS-1(LF)(SN) is the 20-circuit member of JST's PAD series board-to-cable/wire header line, now classified as obsolete by the manufacturer.
Stock is limited to existing distributor inventory; availability is confirmed at RFQ.
No pin-compatible replacement has been announced by JST. The PAD series is discontinued; any alternative would require a different connector family and a board layout change.
RoHS and REACH compliance documentation is available from JST upon request.
