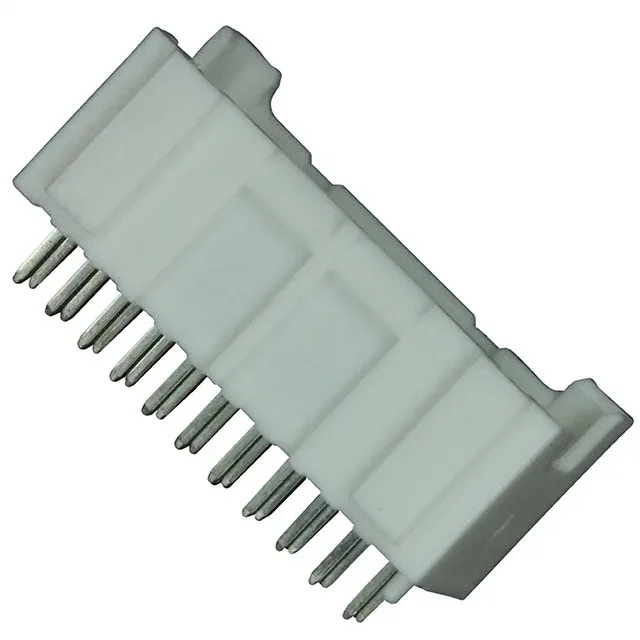

B22B-PADSS-1 — JST product photo
JST

B22B-PADSS-1 JST PAD Header 22 Pos 2mm Shrouded Locking Ramp

MPNB22B-PADSS-1
Active

JST PAD series, Board to Cable/Wire, Header, 22 positions, 2.00mm pitch, Through Hole, Solder termination, Shrouded - 4 Wall, Locking Ramp, Tin contacts, 3 A, 250 V, UL94 V-0.

$1.3800Ref. price · indicative, final on quote
B22B-PADSS-1 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

B22B-PADSS-1 Technical Specifications
ParameterValue
SeriesPAD
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current rating3A
Operating temperature-25°C ~ 85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.402\" (10.20mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
Mated stacking heights12.4mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions22
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Contact finish - matingTin

Product details

22-position 2.00mm pitch header with locking ramp

The B22B-PADSS-1: This is a JST PAD series header, 22 positions in two rows on a 2.00mm pitch, rated 3 A per contact at 250 V. The 4-wall shrouding protects the male pins during handling and guides the mating receptacle into alignment.

Through-hole mounting and board layout fit

The header mounts through-hole with solder termination. The 12.4mm mated stack height is the total height from the PCB surface to the top of the mated receptacle, which sets the clearance needed above the board in the enclosure.

Material and environmental ratings

The operating temperature range is -25°C to 85°C, covering most indoor and sheltered outdoor environments.

Frequently asked questions

What is the mating connector for B22B-PADSS-1?

This is a male pin header from the JST PAD series. It mates with a PAD series female receptacle housing that accepts the appropriate crimp terminals. The locking ramp on the header engages with the mating housing latch for secure retention.

Are there equivalent parts to B22B-PADSS-1?

The closest functional equivalent within the same series is B22B-PADSS-1(LF)(SN), which is identical except for lead-free plating compliance. Other variants include B22B-PADSS and B22B-PADSS(LF)(SN) — all share the same 22-position, 2.00mm pitch, shrouded, locking ramp design.
