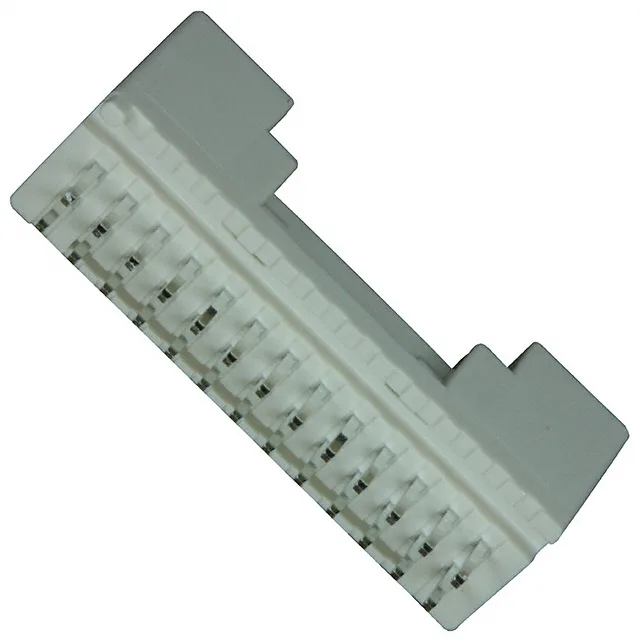

JST PUD B26B-PUDSS-1(LF)(SN) Header, 26 Pos 2.00mm

MPNB26B-PUDSS-1(LF)(SN)
Active

JST PUD header, order code B26B-PUDSS-1(LF)(SN), 26 positions, dual row, 2.00 mm pitch, 3 A, 250 V, tin-plated mating contacts, through-hole, solder termination.

$1.0800Ref. price · indicative, final on quote
B26B-PUDSS-1(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

B26B-PUDSS-1(LF)(SN) Technical Specifications
ParameterValue
SeriesPUD
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating250V
Current rating3A
Operating temperature-25°C~85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.378\" (9.60mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
Mated stacking heights11mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions26
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.122\" (3.10mm)
Contact finish - matingTin

Product details

Through-hole shrouded header for wire-to-board

The B26B-PUDSS-1(LF)(SN) is the 26-circuit member of JST's PUD series board-to-cable/wire header line. It carries tin-plated mating contacts rated 3 A at 250 V and terminates through-hole with solder.

Latch and shrouding for vibration resistance

A latch holder fastening type and full 4-wall shrouding protect the mating interface against accidental disconnection during service. The glass-filled PA66 housing carries a UL94 V-0 flammability rating and includes a board guide for alignment during assembly.

Tray packaging for hand-load or low-volume lines

Supplied in tray packaging — suited for hand-load or low-volume assembly where tape-and-reel feed is not required.
