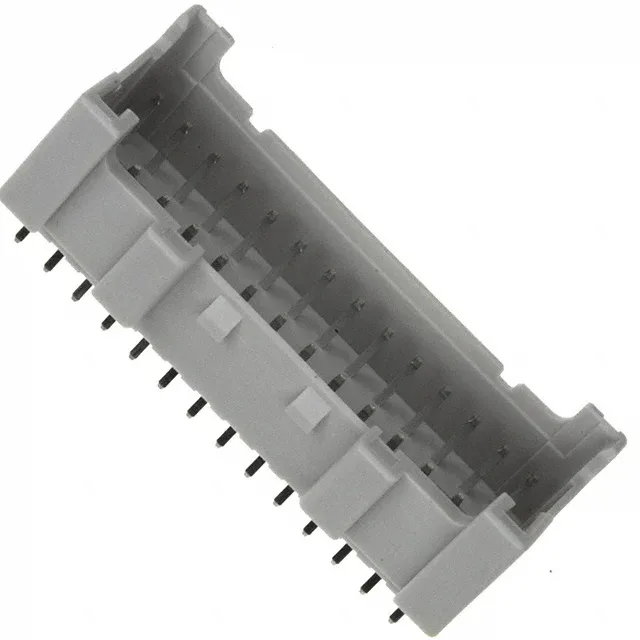

JST B28B-PNDZS-1(T)(LF)(SN) 28-Pin 2mm Pitch Header

MPNB28B-PNDZS-1(T)(LF)(SN)
Active

JST PND series, B28B-PNDZS-1(T)(LF)(SN), shrouded through-hole header, 28 circuits, dual-row, 2.00mm pitch, 3 A, 250 V, locking ramp, UL94 V-0, RoHS, active.

$1.0300Ref. price · indicative, final on quote
B28B-PNDZS-1(T)(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

B28B-PNDZS-1(T)(LF)(SN) Technical Specifications
ParameterValue
SeriesPND
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current rating3A
Operating temperature-25°C~85°C
Contact materialCopper Alloy
Insulation colorIvory
Insulation height0.390\" (9.91mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
Mated stacking heights12.9mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions28
Row spacing - mating0.197\" (5.00mm)
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Contact finish - matingTin

Product details

28-Position, 2.00 mm Pitch — Shrouded Header for Board-to-Wire

Mated stacking height is 12.9 mm, which gives the board layout engineer a fixed z-height budget for the enclosure.

Locking Ramp and Board Guide — Fit for Repeated Mating

Position Count vs. Siblings — 28 vs 24 vs 22

Within the same PND series, the B28B-PNDZS-1 carries 28 positions, while the B24B-PNDZS-1 has 24 and the B22B-PNDZS-1 has 22.
