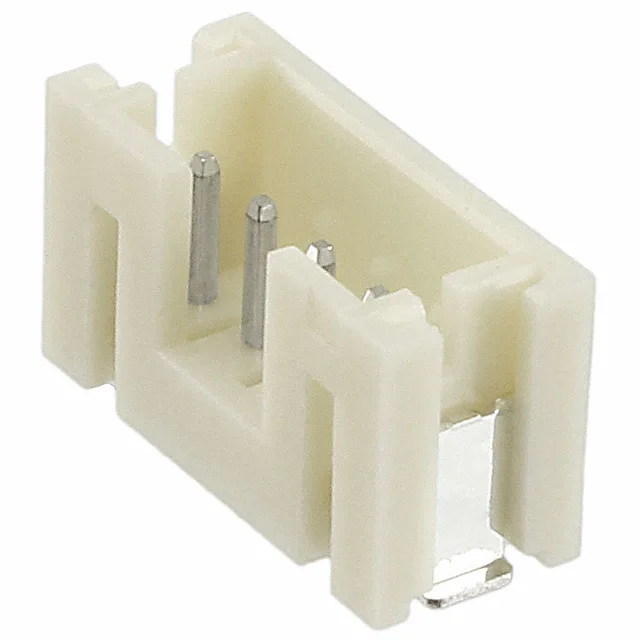

B4B-PH-SM4-TBT(LF)(SN) JST PH Series 4-Pin SMD Header

MPNB4B-PH-SM4-TBT(LF)(SN)
Active

JST PH series, 4-position surface-mount header, 2.00 mm pitch, shrouded with detent lock, tin-plated contacts, rated 2 A at 100 V, UL94 V-0 housing, active production.

$0.8700Ref. price · indicative, final on quote
B4B-PH-SM4-TBT(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

B4B-PH-SM4-TBT(LF)(SN) Technical Specifications
ParameterValue
SeriesPH
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typeDetent Lock
Voltage rating100V
Current rating2A
Operating temperature-25°C~85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.260\" (6.60mm)
Insulation materialPolyamide (PA6T), Nylon 6T
Mated stacking heights8.6mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesPick and Place, Solder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.079\" (2.00mm)
Positions4
Contact finish - postTin
Contact finish - matingTin
Contact length - mating0.130\" (3.30mm)

Product details

2.00 mm Pitch SMD Header for Board-to-Cable Interconnects

The B4B-PH-SM4-TBT(LF)(SN): The detent lock provides positive retention against cable pull and vibration, making it suitable for portable electronics, appliances, and industrial control panels.

4 Circuits, 2 A per Contact, 100 V Rating

The 8.6 mm mated stack height provides clearance for cable routing above the PCB. The UL94 V-0 rated PA6T housing ensures flame retardance for equipment inside enclosures.

SMT Assembly Features: Pick and Place, Solder Retention

The header includes pick-and-place pads for automated assembly and solder retention features that anchor the part during reflow.

Frequently asked questions

What is the mating connector for B4B-PH-SM4-TBT(LF)(SN)?

This header mates with JST PH series crimp-style receptacle housings (e.g., PHR-4) using the appropriate crimp terminals (SPH-002T-P0.5S).

Is B4B-PH-SM4-TBT(LF)(SN) RoHS compliant?

Yes, it is RoHS compliant per the listed status.

Where can I buy B4B-PH-SM4-TBT(LF)(SN) with available via RFQ confirmation?

Availability and current pricing confirmed at quote time.
