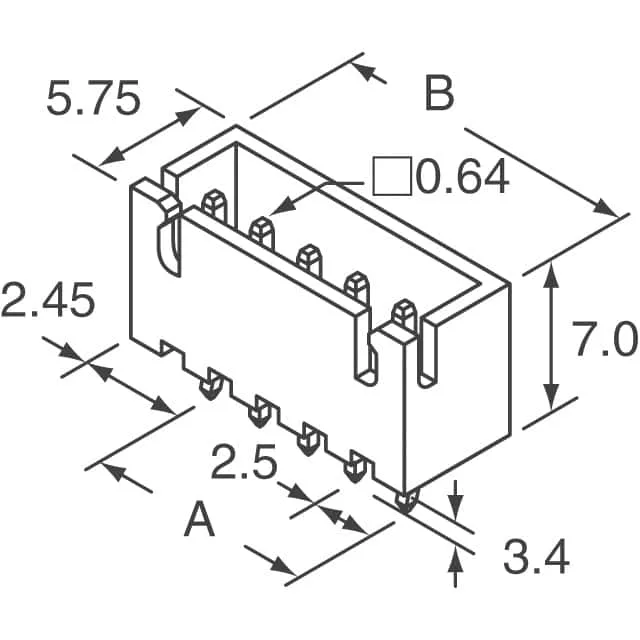

JST XH series, Board to Cable/Wire, 5 Positions, 2.50mm Pitch, Through Hole, Shrouded Header, Tin Contacts, UL94 V-0, 3A, 250V
| Parameter | Value |
|---|---|
| Series | XH |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C~85°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Mated stacking heights | 9.8mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
For applications that see repeated disconnect/reconnect in a corrosive environment, a gold-plated sibling in the XH family would extend contact life.
This header mates with JST XH series crimp-style receptacle housings loaded with the matching tin-plated female terminals. The 9.8 mm mated stack height leaves room for the receptacle's wire exit and strain relief.
The B5B-XH-A(LF)(SN) is an active JST part, sourced through independent distribution.
It mates with JST XH series crimp receptacle housings, such as the XHP-5, loaded with SXH-001T-P0.6 female terminals.
