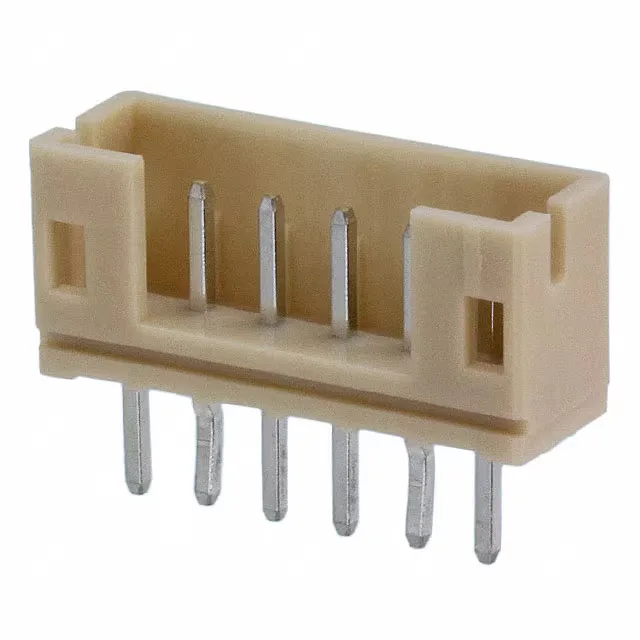

JST PH series, 2.00mm pitch, 6-position, single-row, shrouded header, through hole, tin-plated male pins, rated 2 A, 100 V, detent lock, RoHS.
| Parameter | Value |
|---|---|
| Series | PH |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 100V |
| Current rating | 2A |
| Operating temperature | -25°C~85°C |
| Contact material | Brass |
| Insulation color | Ivory |
| Insulation height | 0.236\" (6.00mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Mated stacking heights | 8mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Overall contact length | 0.333\" (8.45mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.130\" (3.30mm) |
The B6B-PH-K(LF)(SN): Mates with JST PH series crimp receptacles — the detent lock clicks when fully seated, giving positive retention against cable pull.
The tin-plated mating surface keeps resistance stable through the rated 2 A, and the 8.45 mm overall contact length provides enough wipe for reliable connection.
It mates with JST PH series crimp receptacles, such as the PHR-6 housing with SPH-002T-P0.5S terminals.
