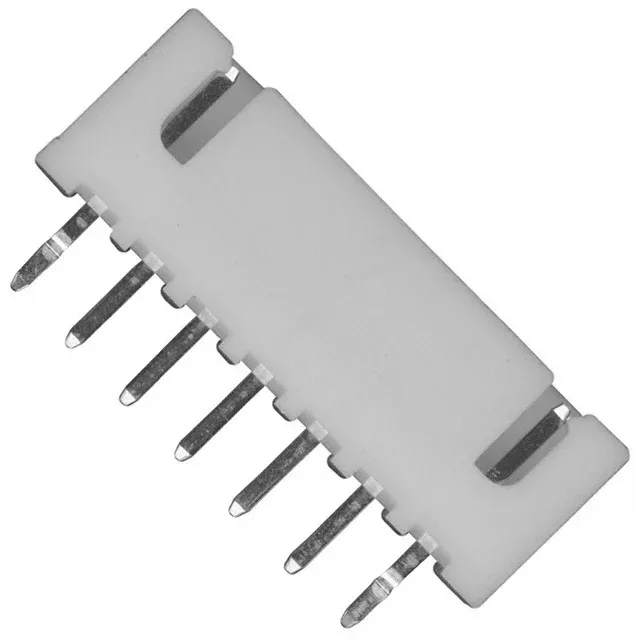

Board-to-Cable Header for 7-Circuit XH Series
The B7B-XH-A(LF)(SN): It carries a 2.50mm pitch — the footprint matches the standard XH receptacle housing, and the 0.098" spacing keeps the board routing dense enough for signal-level circuits without crowding traces.
Mounting and Termination Fit for Wave-Solder Lines
Termination is press-fit, solder — the through-hole pins are designed for wave-solder or selective-solder processes. The header mates at a 9.8mm stack height with the corresponding XH receptacle housing. That z-height budget is tight enough for compact enclosures but leaves clearance for the wire exit radius from the receptacle — check the cable bend radius against the housing wall clearance in your assembly.
The part ships in bulk packaging, which is standard for through-hole headers; if you need tape-and-reel for automated insertion, check the base product number B7B-XH-A for alternate packaging options.
