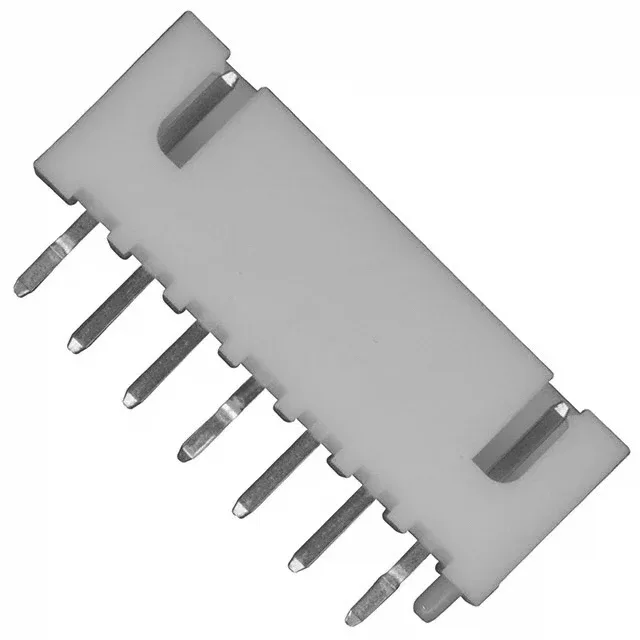

JST Sales America Inc., XH series, Board to Cable/Wire Header, 7 positions, 0.098" (2.50mm) pitch, Through Hole, Tin contacts, Detent Lock, UL94 V-0, Bulk.
| Parameter | Value |
|---|---|
| Series | XH |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C~85°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Mated stacking heights | 9.8mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
The B7B-XH-AM(LF)(SN): The through-hole termination with a 3.40 mm post length gives a solid solder joint on a 1.6 mm PCB; the press-fit feature aids alignment during assembly.
ROHS3 compliant and lead-free — the (LF)(SN) suffix confirms the tin plating meets RoHS requirements.
The pitch is 0.098" (2.50 mm) and it has 7 positions, all loaded.
Yes, it is ROHS3 compliant and the tin plating is lead-free.
The mating half is a JST XH series crimp receptacle housing, such as the XHP-7 (7-position) or similar, using the SXH-001T-P0.6 or equivalent crimp terminal.
