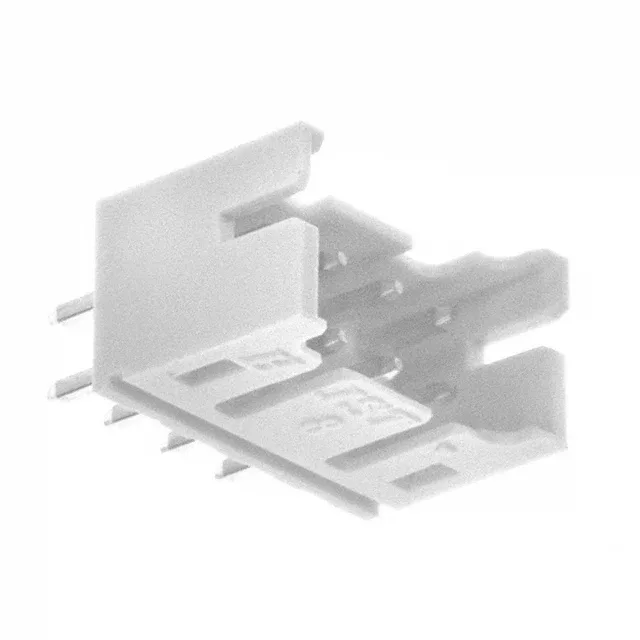

JST PHD series, Board to Cable/Wire, Header, Male Pin, 8 Positions, 2.00 mm Pitch, Through Hole, Solder Termination, Shrouded - 4 Wall, Detent Lock, Tin Contacts, UL94 V-0, Bulk
| Parameter | Value |
|---|---|
| Series | PHD |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.256\" (6.50mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Mated stacking heights | 8.8mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 8 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.291\" (7.40mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.114\" (2.90mm) |
Rated at 3 A per contact and 250 V, this header suits low-to-moderate power signal and control circuits inside equipment enclosures where the operating temperature stays between -25°C and 85°C.
The only difference is the number of circuits — 8 vs 10 vs 12 — which changes the PCB footprint length proportionally.
Common mating halves include the PHR series crimp housings (e.g., PHR-8) with SPHD-002T-P0.5 terminals, or the PHD series IDC connectors. Confirm the exact mating part number against your assembly drawing.
