Mating Half and Termination

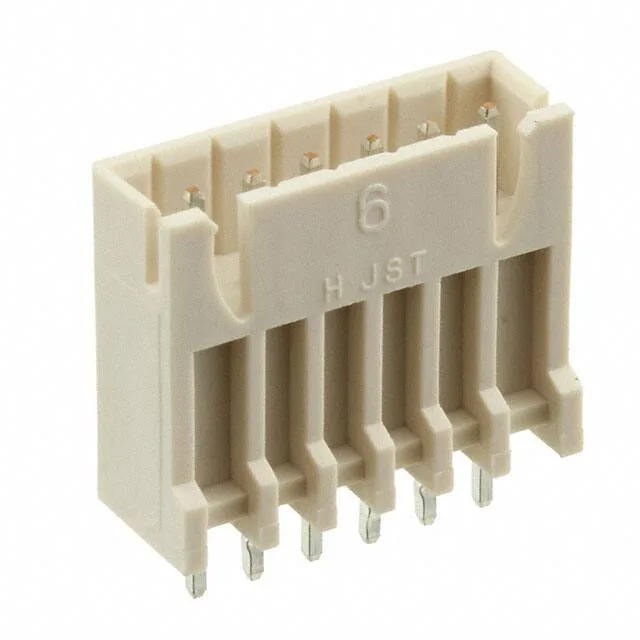

The BH6B-XH-2(LF)(SN): This header mates with JST XH series crimp receptacles (e.g., housing XHP-6, terminal SXH-001T-P0.6). The square male pins accept the receptacle's crimp terminals for a gas-tight connection.
JST Sales America Inc., XH series, Board to Cable/Wire header, 6 positions, 1 row, 0.098" (2.50mm) pitch, Through Hole, Press-Fit/Solder termination, Tin contacts, Shrouded - 4 Wall, Detent Lock, UL94 V-0, -25°C~85°C, 3A, 250V.
$0.4600Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | XH |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C~85°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
What is the exact mating connector for BH6B-XH-2(LF)(SN)?
It mates with JST XH series crimp receptacles: housing XHP-6 and terminal SXH-001T-P0.6.
