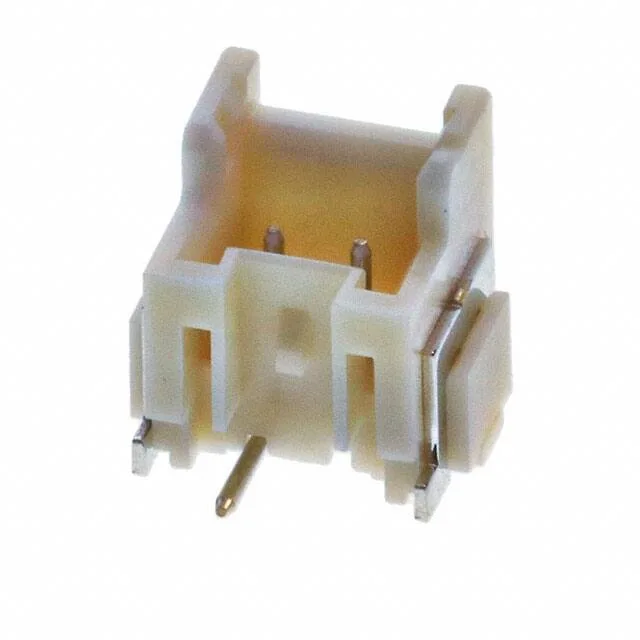

2-Position SMD Header for Wire-to-Board Applications
The BM02B-XASS-TF(LF)(SN): Rated at 3A per contact and 250V, this header suits low-power signal and control circuits where the current draw stays within the derating curve of the tin-plated contact interface.
The mated stacking height of 11.9mm gives a moderate z-height budget — enough clearance for most low-profile enclosures while keeping the connector accessible for field mating. Insulation height of 0.370" (9.40mm) means the header stands tall enough to clear nearby components on the board, but the overall profile stays within typical wire-to-board connector ranges.
Termination is solder-only (SMD), so the cable assembly uses a separate crimp terminal and housing — don't order half a connection; pair this header with the XA receptacle and the correct terminal for the wire gauge.
The base product number BM02B-XA covers the unpopulated header; the full suffix includes the SMD option and tin plating. No direct pin-compatible cross from other manufacturers is documented, but the XA series is well-supported with mating parts.
