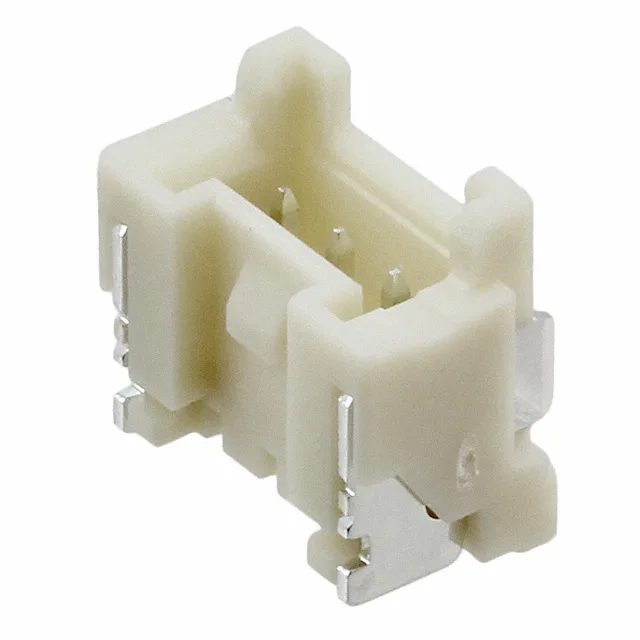

JST PA series header, order code BM03B-PASS-1-TFT(LF)(SN), 3 positions, single row, 2.00 mm pitch, 3 A, 250 V, tin-plated mating contacts, surface-mount, solder termination.
JST PA series header, order code BM03B-PASS-1-TFT(LF)(SN), 3 positions, single row, 2.00 mm pitch, 3 A, 250 V, tin-plated mating contacts, surface-mount, solder termination.
$0.7700Ref. price · indicative, final on quote
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | PA |
| Gender | Male Pin |
| Mounting type | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C~85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.350\" (8.89mm) |
| Insulation material | Polyamide (PA), Nylon |
| Mated stacking heights | 11.1mm, 16mm, 16.2mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide, Pick and Place, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
