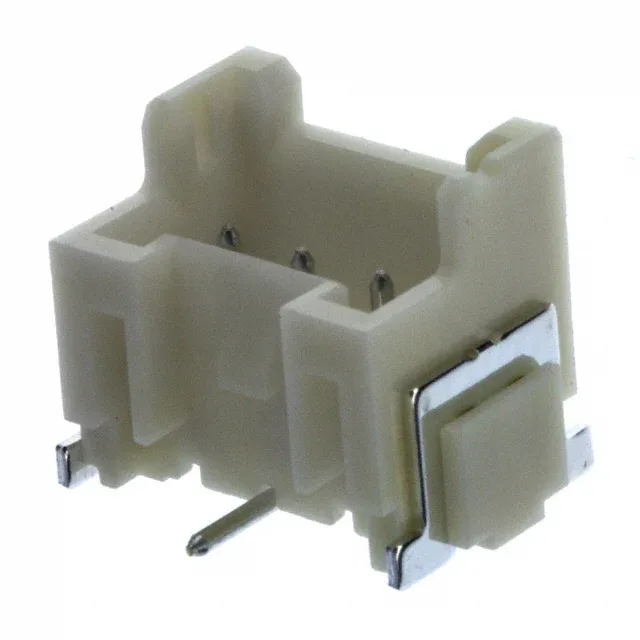

BM03B-XASS-TF(LF)(SN) JST XA Series 3-Pin SMT Header 2.5mm

MPNBM03B-XASS-TF(LF)(SN)
Active

JST Sales America Inc. XA series, Board to Cable/Wire, Header, Male Pin, 3 Positions, 2.50mm (0.098") Pitch, Surface Mount, Solder Termination, Shrouded - 4 Wall, Locking Ramp, Tin Contacts, 3A, 250V, Natural Insulation, UL94 V-0.

$0.9300Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

BM03B-XASS-TF(LF)(SN) Technical Specifications
ParameterValue
SeriesXA
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current rating3A
Operating temperature-25°C~85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.370\" (9.40mm)
Insulation materialPolyamide (PA), Nylon
Mated stacking heights11.9mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeCircular
Rows1
Pitch0.098\" (2.50mm)
Positions3
Contact finish - postTin
Contact finish - matingTin

Product details

Board Fit and Mated Stack Height

The BM03B-XASS-TF(LF)(SN): The 2.50mm pitch sets the PCB footprint for a single-row, 3-position layout.

Position Count and Series Siblings

Within the XA series SMT header family, the 3-position BM03B-XASS-TF(LF)(SN) sits between the 2-position BM02B-XASS-TF(LF)(SN) and the 4-position BM04B-XASS-TF(LF)(SN) — all sharing the same 2.50mm pitch, 3 A rating, 11.9mm stack height, and natural UL94 V-0 housing. A 5-position variant (BM05B-XASS-TF) is also available in the same SMT format if the application requires additional circuits.
