6-Position SMT Header for Wire-to-Board Harnesses

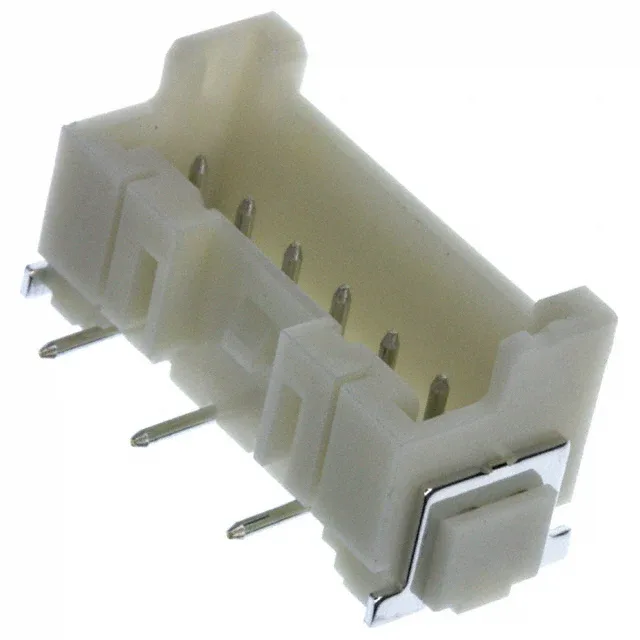

The BM06B-XASS-TF(LF)(SN) is a 6-position, single-row, surface-mount header from JST's XA series. It mates with XA crimp-style receptacle housings for a board-to-cable/wire connection.
JST Sales America Inc., XA series, 6-position single-row SMT header, 2.50 mm pitch, shrouded 4-wall, locking ramp, tin-plated contacts, 3 A, 250 V, UL94 V-0 natural nylon.
$1.1600Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | XA |
| Gender | Male Pin |
| Mounting type | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C~85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.370\" (9.40mm) |
| Insulation material | Polyamide (PA), Nylon |
| Mated stacking heights | 11.9mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
