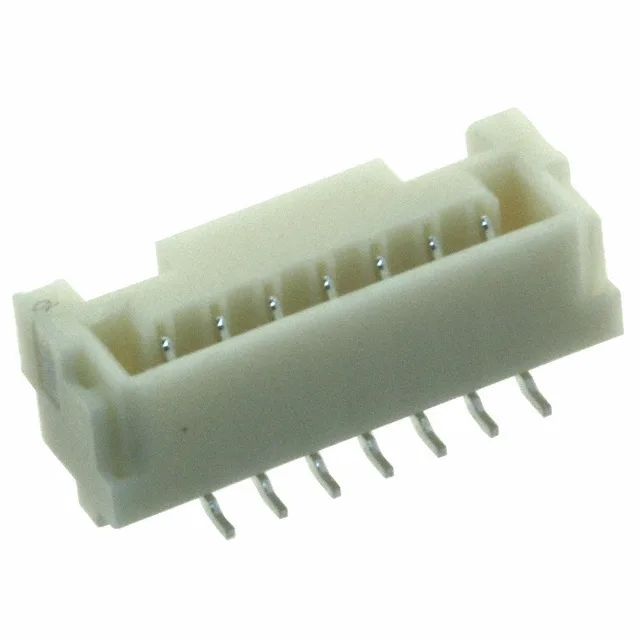

JST GVH header, order code BM07B-GVHS-TB(LF)(SN), 7 positions, single row, 1.25 mm pitch, 1 A, 50 V, tin-plated mating contacts, surface-mount, solder termination, shrouded - 4 wall, latch holder.
| Parameter | Value |
|---|---|
| Series | GVH |
| Gender | Outer Shroud Contact |
| Mounting type | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 50V |
| Current rating | 1A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Phosphor Bronze |
| Insulation color | Natural |
| Insulation height | 0.159\" (4.05mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T |
| Mated stacking heights | 8.8mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The BM07B-GVHS-TB(LF)(SN) is the 7-circuit member of JST's GVH header line, a board-to-cable/wire connector with a 1.25 mm pitch and a single-row layout. The shrouded 4-wall housing with latch holder provides secure retention against cable pull.
