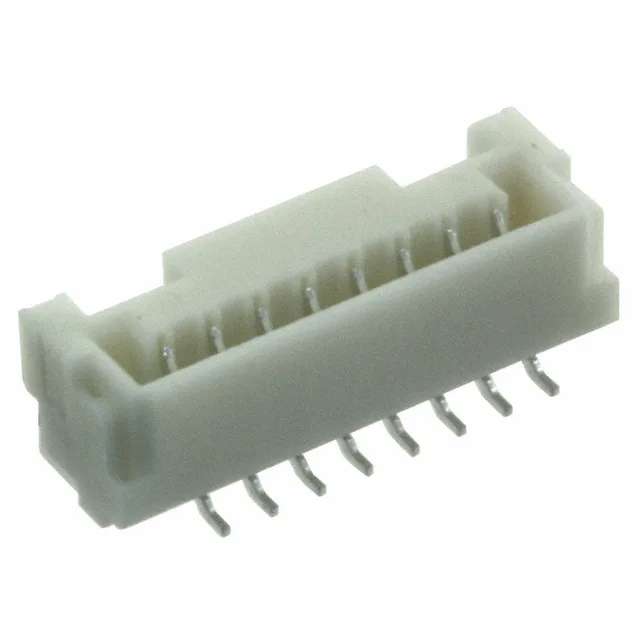

JST GVH header, order code BM08B-GVHS-TB(LF)(SN), 8 positions, single row, 1.25 mm pitch, 1 A, 50 V, tin-plated mating contacts, surface-mount, solder termination, shrouded - 4 wall, latch holder.
| Parameter | Value |
|---|---|
| Series | GVH |
| Gender | Outer Shroud Contact |
| Mounting type | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 50V |
| Current rating | 1A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Phosphor Bronze |
| Insulation color | Natural |
| Insulation height | 0.159\" (4.05mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T |
| Mated stacking heights | 8.8mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The BM08B-GVHS-TB(LF)(SN) is the 8-circuit member of JST's GVH header series, a shrouded single-row board-to-wire connector on 1.25 mm pitch.
The 4-wall shrouded housing with latch holder mates to a GVH-series receptacle — the latch clicks to confirm full engagement and resists accidental disconnection. Mated stack height is 8.8 mm, and the insulation height of 0.159" (4.05 mm) keeps the profile low over the board.
The BM08B-GVHS-TB(LF)(SN) achieves a mated stack height of 8.8 mm when paired with a GVH-series receptacle.
