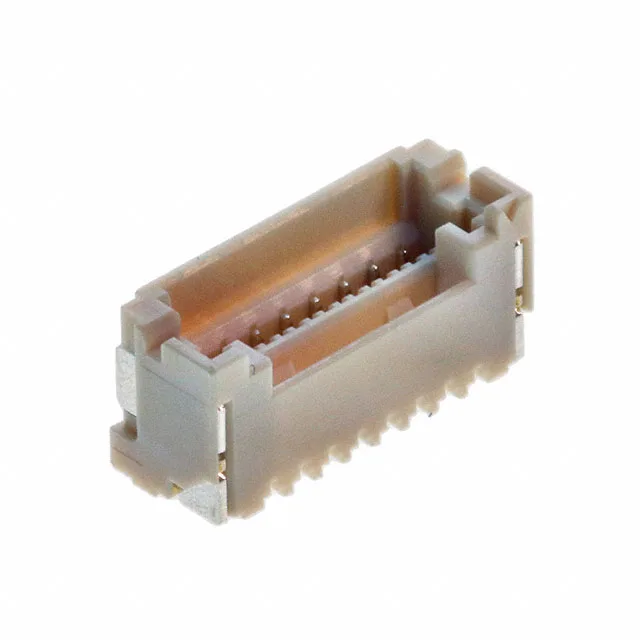

BM08B-ZESS-TBT(LF)(SN) — JST product photo
JST

BM08B-ZESS-TBT(LF)(SN) JST ZE Header, 8-Pos 1.50mm

MPNBM08B-ZESS-TBT(LF)(SN)
Active

JST ZE header, order code BM08B-ZESS-TBT(LF)(SN), 8 positions, single row, 1.50 mm pitch, 2 A, 100 V, tin-plated mating contacts, surface-mount, solder termination.

$1.0400Ref. price · indicative, final on quote
BM08B-ZESS-TBT(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

BM08B-ZESS-TBT(LF)(SN) Technical Specifications
ParameterValue
SeriesZE
GenderOuter Shroud Contact
Mounting typeSurface Mount
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating100V
Current rating2A
Operating temperature-25°C~85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.295\" (7.50mm)
Insulation materialPolyamide (PA), Nylon
Mated stacking heights9.4mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesPick and Place, Solder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeRectangular
Rows1
Pitch0.059\" (1.50mm)
Positions8
Contact finish - postTin
Contact finish - matingTin

Product details

Shrouded 8-way header for wire-to-board

The BM08B-ZESS-TBT(LF)(SN) is the 8-circuit member of JST's ZE series wire-to-board header line. It carries tin-plated mating contacts rated 2 A at 100 V and mounts surface-mount with solder termination.

Locking ramp and shrouded walls

The 4-wall shrouding and locking ramp protect the contacts during mating and resist vibration-induced disconnection. Mated stack height is 9.4 mm with an insulation height of 0.295" (7.50 mm) — the shroud depth sets the engagement envelope.
