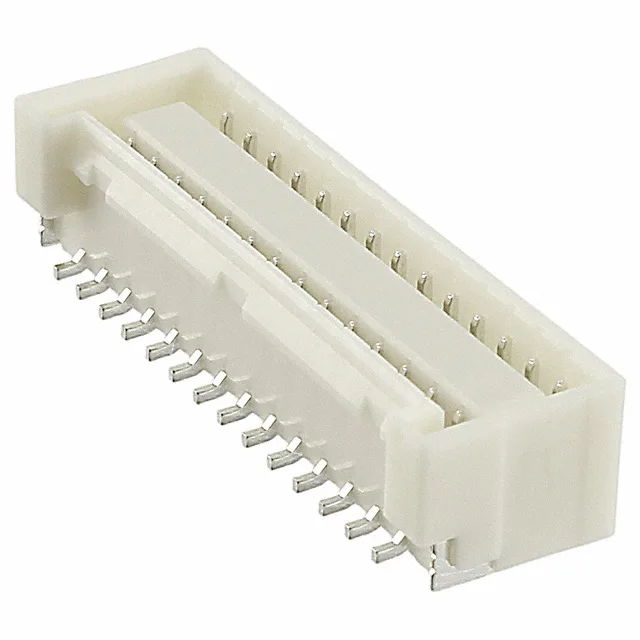

JST ZPD header, order code BM28B-ZPDSS-TF(LF)(SN), 28 positions, dual row, 1.50 mm pitch, 2 A, 100 V, tin-plated mating contacts, surface-mount, solder termination.
| Parameter | Value |
|---|---|
| Series | ZPD |
| Gender | Outer Shroud Contact |
| Mounting type | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 100V |
| Current rating | 2A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.219\" (5.56mm) |
| Insulation material | Polyamide (PA), Nylon |
| Mated stacking heights | 9.5mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 28 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The BM28B-ZPDSS-TF(LF)(SN): The 28-position ZPD header mates to a 9.5 mm stack height, set by the 0.219" (5.56 mm) insulation height and the matching receptacle. The locking ramp and 4-wall shrouding protect the contact interface against vibration and mis-mate.
The mated stack height is 9.5 mm, determined by the 0.219" (5.56 mm) insulation height and the mating receptacle.
The housing material is rated UL94 V-0. RoHS and REACH compliance documentation is available from JST Sales America Inc. for the BM28B-ZPDSS-TF(LF)(SN).
