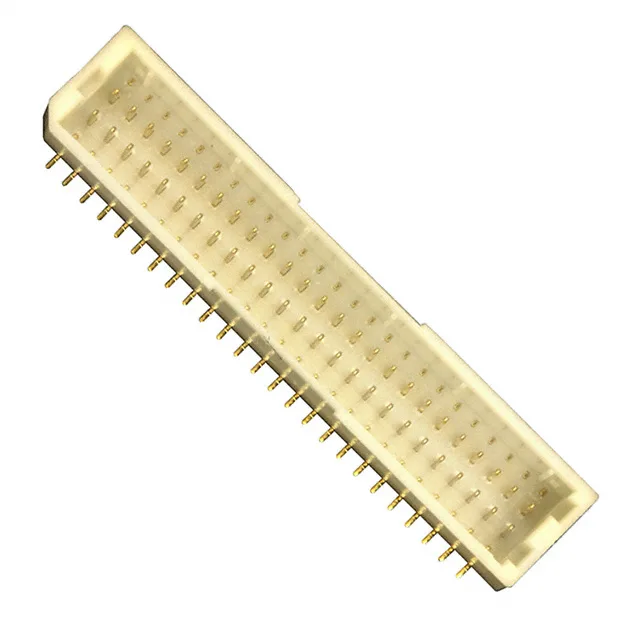

JST BM50B-SRDS-A-G-TF(LF)(SN) Header, 50-Pos 1.00mm

MPNBM50B-SRDS-A-G-TF(LF)(SN)
Active

JST SHD series header, order code BM50B-SRDS-A-G-TF(LF)(SN), 50 positions, dual row, 1.00 mm pitch, 1 A, 50 V, gold-plated mating contacts, surface-mount, solder termination.

$1.9213Ref. price · indicative, final on quote
BM50B-SRDS-A-G-TF(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

BM50B-SRDS-A-G-TF(LF)(SN) Technical Specifications
ParameterValue
SeriesSHD
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typePush-Pull
Voltage rating50V
Current rating1A
Operating temperature-25°C ~ 85°C
Contact materialPhosphor Bronze
Insulation colorNatural
Insulation height0.167\" (4.25mm)
Insulation materialPolyamide (PA), Nylon, Glass Filled
Mated stacking heights6.3mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide, Pick and Place, Solder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.039\" (1.00mm)
Positions50
Contact finish - matingGold

Product details

50-position SHD board-to-wire header

The BM50B-SRDS-A-G-TF(LF)(SN) is the 50-circuit member of JST's SHD series board-to-wire header line, dual-row, 1.00 mm pitch. Gold-plated mating contacts rated 1 A at 50 V, surface-mount solder termination, shrouded on all four walls.
