3 A at 250 V with Tin Plating and UL94 V-0 Housing
The S02B-XASS-1(LF)(SN): The tin plating works well in controlled environments; for repeated disconnect cycles in corrosive atmospheres, a gold-plated variant would be preferred.
JST Sales America Inc. XA series, S02B-XASS-1(LF)(SN), Board to Cable/Wire, 2 Positions, 0.098" (2.50mm) Pitch, Through Hole, Right Angle, Shrouded - 4 Wall, Locking Ramp, 3A, 250V, Tin Contacts, UL94 V-0, RoHS Compliant, Active
$0.4500Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | XA |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C~85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |

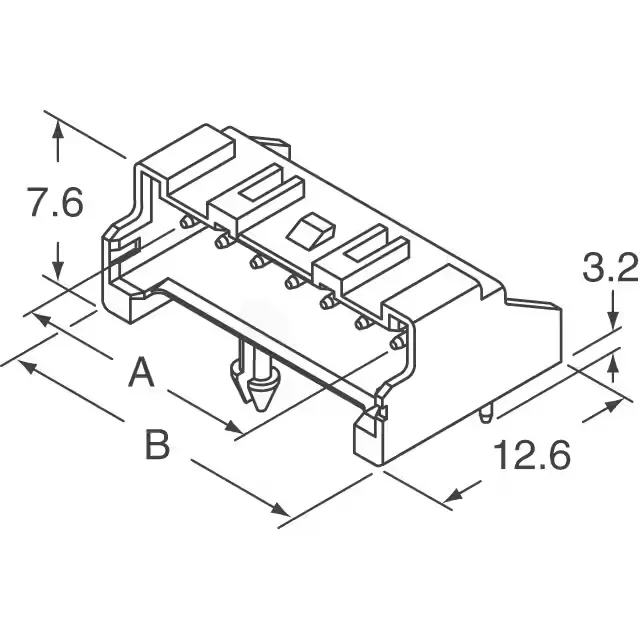

| Insulation height | 0.299\" (7.60mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
What connector mates with S02B-XASS-1(LF)(SN)?
This header mates with a JST XA series crimp receptacle housing (e.g., XARP-02V) loaded with the matching crimp terminals (SXA-001T-P0.6).
