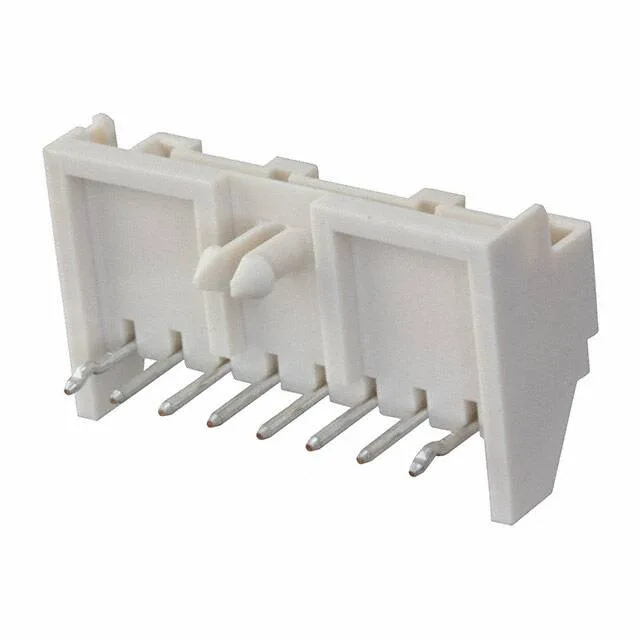

JST XA series, 8-position single-row header, 2.50mm pitch, right-angle through-hole, tin-plated male pins, locking ramp, board lock, UL94 V-0 natural housing, 3 A, 250 V.
| Parameter | Value |
|---|---|
| Series | XA |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C~85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.299\" (7.60mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
The S08B-XASK-1(LF)(SN): This is a JST XA series 8-position header that connects a wire harness to a PCB. A board lock on each mounting post anchors the header during reflow and resists shear force from the cable during assembly.
It is RoHS compliant.
