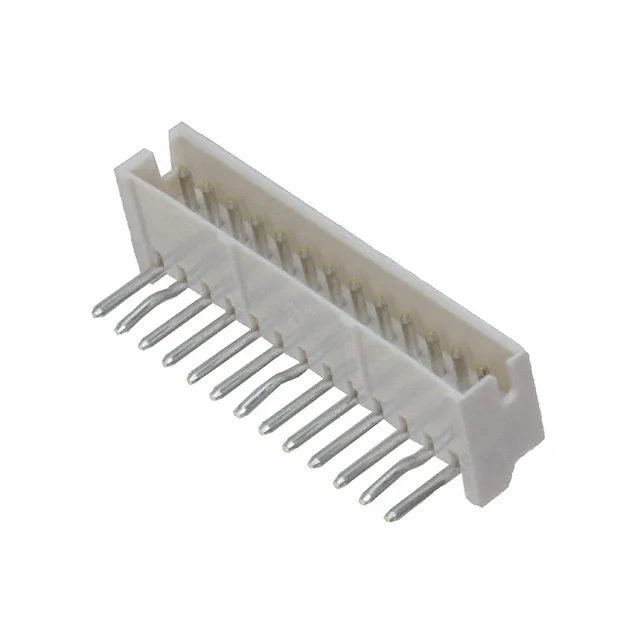

JST Sales America Inc., ZH series, Board to Cable/Wire Header, 13 positions, 1.50mm pitch, Through Hole, Right Angle, Detent Lock, Tin contacts, UL94 V-0
| Parameter | Value |
|---|---|
| Series | ZH |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 50V |
| Current rating | 1A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.146\" (3.70mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 13 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
The S13B-ZR-3.4: This is a JST ZH series header, 13 positions on 1.50mm pitch, through-hole right-angle mounting. It mates with the ZH series crimp receptacle housing — the detent lock gives a positive click when fully seated, so you know it's home.
No secondary lock needed for typical signal duty. Contact length after the board is 0.134" (3.40mm), suited for standard 1.6mm PCBs.
The S13B-ZR-3.4 mates with the JST ZH series crimp receptacle housing (e.g., ZHR-13). The detent lock on the header engages with the latch on the receptacle.
No. The S13B-ZR-3.4 is listed as RoHS non-compliant. If your BOM requires RoHS compliance, consider the S13B-ZR(LF)(SN) variant instead.
The S13B-ZR is functionally identical in pitch, position count, and electrical ratings. The S13B-ZR-3.4 has a specific post length of 0.134" (3.40mm), while the S13B-ZR may have a different post length — verify the board thickness before substituting.
