JST ZH-series header, S13B-ZR(LF)(SN), 13-position single-row, 1.50mm pitch, through-hole right-angle, shrouded 4-wall, tin-plated contacts, 1 A, 50 V, UL94 V-0, bulk pack.
| Parameter | Value |
|---|---|
| Series | ZH |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 50V |
| Current rating | 1A |
| Operating temperature | -25°C~85°C |
| Contact material | Brass |
| Insulation color | Natural |

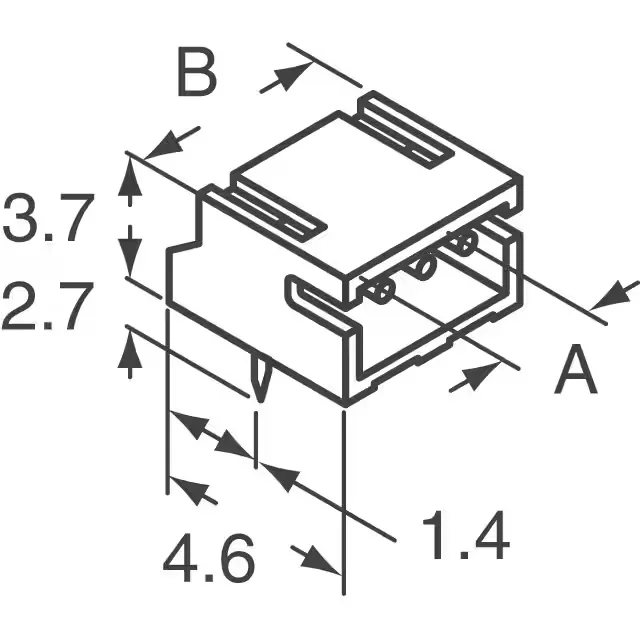

| Insulation height | 0.146\" (3.70mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 13 |
| Contact finish - post | Tin |
| Contact length - post | 0.106\" (2.69mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.094\" (2.40mm) |
The header uses a detent lock for positive retention with the mating receptacle — a simple, audible latch that holds against moderate vibration without a secondary lock. Termination is solder to the through-hole PCB; the post length of 0.106" (2.69mm) and mating pin length of 0.094" (2.40mm) are standard for ZH-series wire-to-board applications.
The S13B-ZR(LF)(SN) is available through independent distribution.
The mating pitch is 0.059" (1.50mm), which is the standard for the ZH series.
The S13B-ZR-3.4 and S13B-ZR are functionally identical — same 13 positions, 1.50mm pitch, right-angle through-hole, and tin contacts. The suffix (LF)(SN) indicates lead-free and tin plating.
