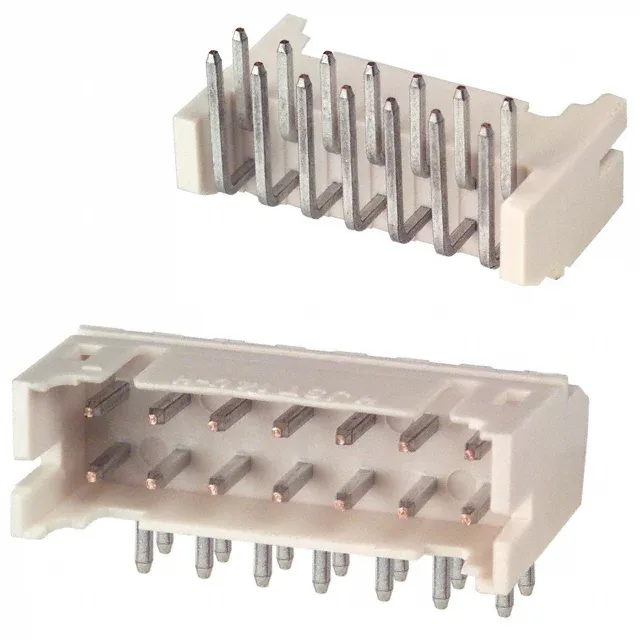

S14B-PHDSS(LF)(SN) — JST product photo
JST

JST S14B-PHDSS(LF)(SN) 14-Position Right-Angle Header

MPNS14B-PHDSS(LF)(SN)
Active

JST PHD series, Board to Cable/Wire, Header, 14 positions, 2.00mm pitch, 3A, 250V, Through Hole Right Angle, Tin contacts, Detent Lock, UL94 V-0, Active.

$0.6900Ref. price · indicative, final on quote
S14B-PHDSS(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

S14B-PHDSS(LF)(SN) Technical Specifications
ParameterValue
SeriesPHD
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating250V
Current rating3A
Operating temperature-25°C~85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.197\" (5.00mm)
Insulation materialPolyamide (PA), Nylon, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions14
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.118\" (3.00mm)
Contact finish - matingTin
Contact length - mating0.114\" (2.90mm)

Product details

Right-Angle 14-Position Header for PHD Crimp Receptacles

The S14B-PHDSS(LF)(SN): This is a 14-position, 2.00mm-pitch, through-hole right-angle header from JST's PHD series. It mates with the PHD crimp-style receptacle housings (sold separately) to form a board-to-cable/wire connection.

Tin-Plated Contacts and Mating Cycle Budget

The 3A rating is derated from the maximum current the contact can carry at a 30°C temperature rise within the UL94 V-0 nylon housing; in a 60°C ambient, expect to derate to roughly 2A per contact.

The PHD series offers the same 2.00mm pitch, tin plating, and right-angle form in 12-position (S12B-PHDSS) and 16-position (S16B-PHDSS) variants. All three share identical electrical ratings and mechanical features — the choice is purely the number of circuits needed on the BOM.

Frequently asked questions

What is the mating connector for S14B-PHDSS(LF)(SN)?

It mates with JST PHD series crimp receptacle housings, such as the PHR-14 (14-position) or similar, using the appropriate crimp terminals (e.g., SPHD-001T-P0.5).
