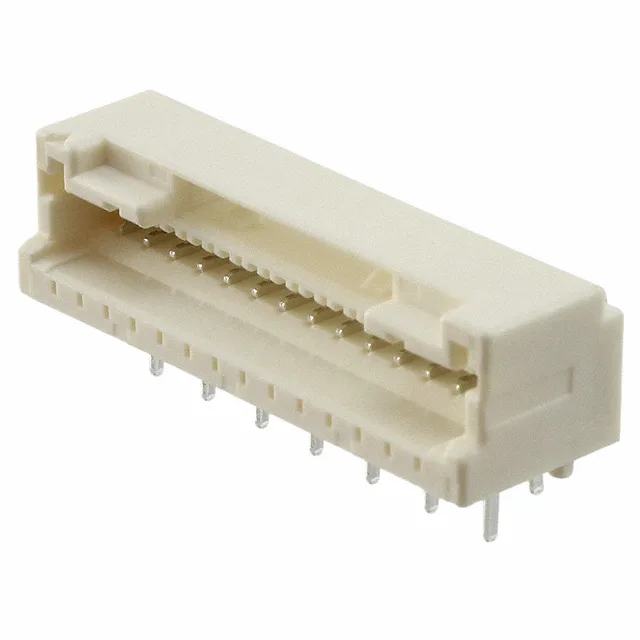

JST ZE header, order code S14B-ZESK-2D(T)(LF)(SN), 14 positions, single row, 1.50 mm pitch, 2 A, 100 V, tin-plated mating contacts, through-hole right-angle, kinked pin solder termination.
| Parameter | Value |
|---|---|
| Series | ZE |
| Gender | Outer Shroud Contact |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 100V |
| Current rating | 2A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.248\" (6.30mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 14 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
The S14B-ZESK-2D(T)(LF)(SN) is the 14-position member of JST's ZE series board-to-cable/wire header line. It carries tin-plated mating contacts rated 2 A at 100 V, mounts through-hole right-angle with kinked pin solder termination, and includes a locking ramp for secure mating.
The shrouded 4-wall housing with board guide and UL94 V-0 rated polyamide insulation supports reliable alignment during assembly.
RoHS and REACH compliance documentation is available from the manufacturer.
