20-Position 2.00 mm Right-Angle Header for Board-to-Wire

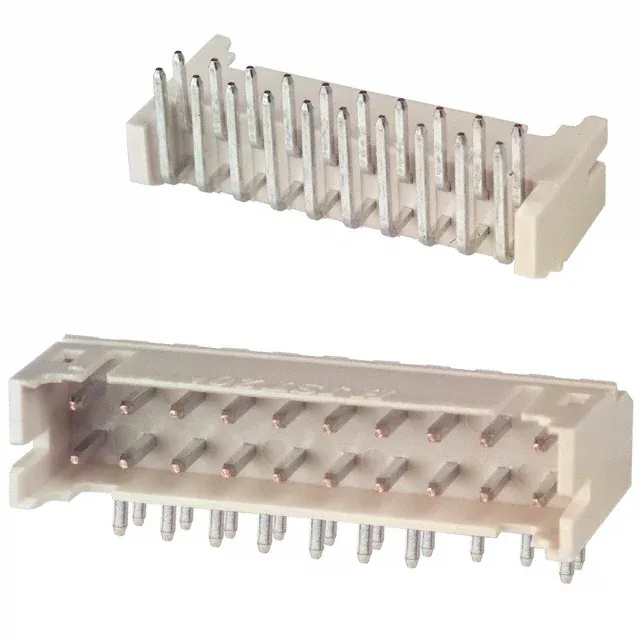

The S20B-PHDSS(LF)(SN): Its 2.00 mm pitch and 2.00 mm row spacing set the PCB footprint for a compact, high-density interconnect.
Pitch and Footprint: 2.00 mm Board Layout
The 2.00 mm mating pitch and 2.00 mm row spacing dictate the PCB hole pattern.
Mating and Locking: Detent Lock and PHD Receptacle
This header mates with JST PHD series crimp receptacles (e.g., PHR-xx, with separate crimp terminals). The detent lock engages with a click, confirming full seating — no secondary locking required for most applications.
