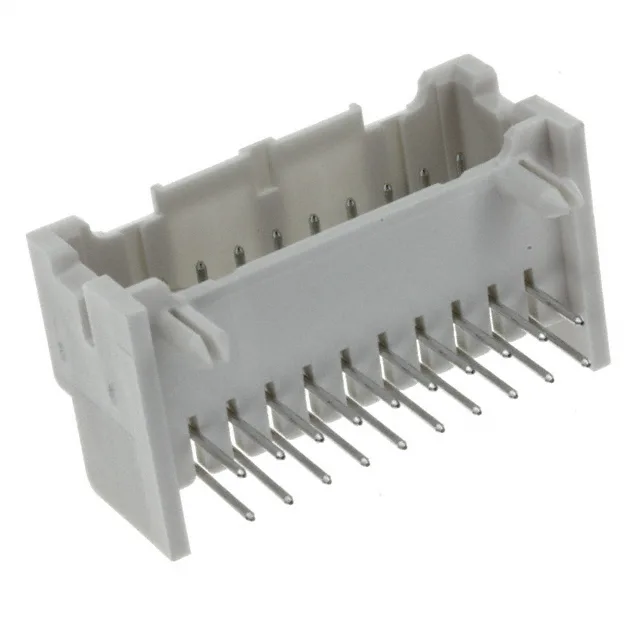

JST XAD header, order code S20B-XADSS-N(LF)(SN), 20 positions, dual row, 2.50 mm pitch, 3 A, 250 V, tin-plated mating contacts, through-hole right-angle, solder termination, shrouded - 4 wall.
| Parameter | Value |
|---|---|
| Series | XAD |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C~85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.476\" (12.10mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 20 |
| Row spacing - mating | 0.098\" (2.50mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
The S20B-XADSS-N(LF)(SN) is the 20-circuit member of JST's XAD board-to-cable/wire header line, a shrouded 4-wall design at 2.50 mm pitch. Rated 3 A per contact at 250 V with tin-plated mating contacts, the header mounts through-hole right-angle and is housed in a UL94 V-0 glass-filled nylon 6/6 insulator.
