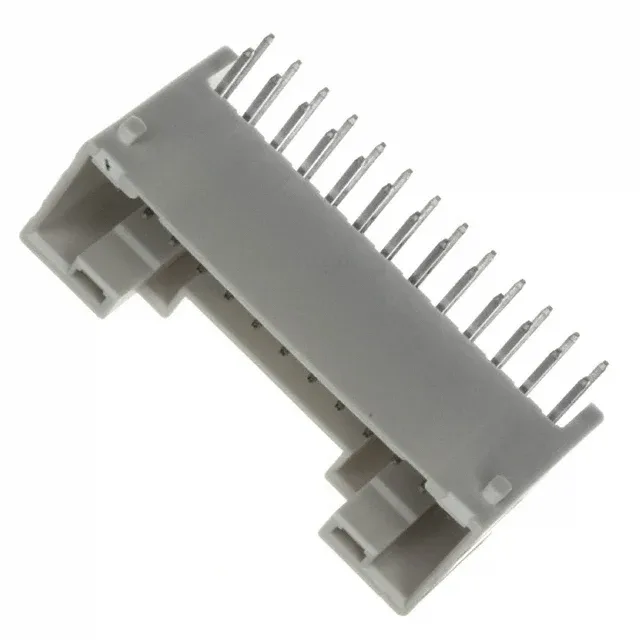

S26B-PUDSS-1(LF)(SN) — JST product photo

S26B-PUDSS-1(LF)(SN) JST PUD Header 26-Pin 2mm Right Angle

MPNS26B-PUDSS-1(LF)(SN)
Active

JST PUD series, Board to Cable/Wire, Header, Male Pin, 26 circuits, 2.00 mm pitch, Through Hole, Right Angle, Tin mating finish, Latch Holder, UL94 V-0, Tray

$1.0300Ref. price · indicative, final on quote
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

S26B-PUDSS-1(LF)(SN) Technical Specifications
ParameterValue
SeriesPUD
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Voltage rating250V
Current rating3A
Operating temperature-25°C~85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.335\" (8.51mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions26
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.118\" (3.00mm)
Contact finish - matingTin

Product details

The S26B-PUDSS-1(LF)(SN): Tin is fine for a few dozen mate cycles in a fixed harness; if the connector sees frequent field disconnect, gold-plated contacts in the same series would hold up longer.

Latch Holder and Shroud — Vibration Duty

The latch holder locks the receptacle in place — it's a positive retention feature that resists back-out under vibration, unlike a simple friction fit. The board guide aligns the header during insertion into the PCB, which helps keep the pins straight through the plated holes — a small detail that saves rework when the board goes through wave solder.

Peer Comparison — 22 vs 26 Positions

The closest sibling is S22B-PUDSS-1 (or its LF/SN variant) — same pitch, same right-angle orientation, same latch holder and shrouding, but 22 circuits instead of 26. If your BOM calls for 22 positions, that part saves four PCB holes and a bit of board edge real estate; if you need the full 26, this is the one.

Frequently asked questions

Is S26B-PUDSS-1(LF)(SN) compatible with JST PUD crimp housings?

Yes. Use the matching PUD crimp terminals for the wire side.
