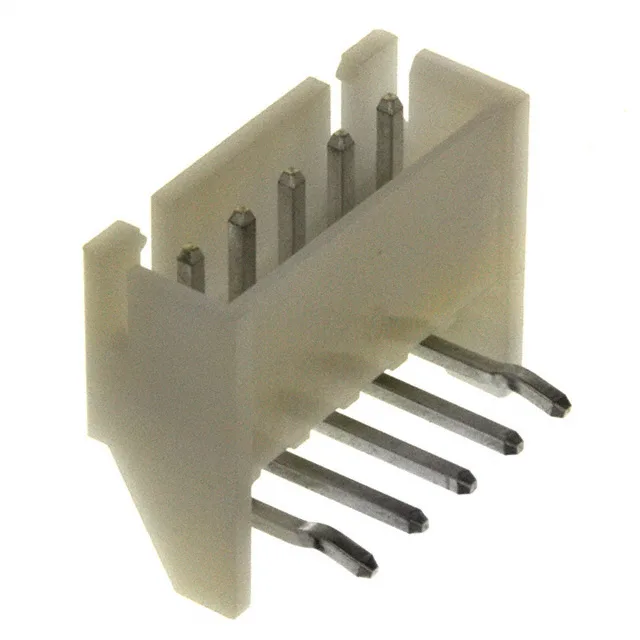

JST XH series, 5-position single-row header, 2.50mm pitch, right-angle through-hole, tin-plated male pins, shrouded 4-wall housing, rated 3A per contact at 250V, UL94 V-0 natural PA66.
| Parameter | Value |
|---|---|
| Series | XH |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C~85°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.240\" (6.10mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
The S5B-XH-A(LF)(SN): The 0.134 inch (3.40 mm) post length after the right-angle bend suits standard 1.6 mm PCBs – the pin protrudes enough for a reliable solder fillet without excessive tail length that could short to adjacent traces. Insulation height of 0.240 inch (6.10 mm) above the board surface gives clearance for the mating housing latch and keeps the overall profile low enough for tight enclosures.
This header mates with JST XH series female crimp housings (e.g., XHP-5) using the appropriate crimp terminals (SXH-001T-P0.6 or equivalent). The 5-position single-row configuration and 2.50 mm pitch are the key alignment parameters.
The (LF)(SN) suffix indicates lead-free and tin-plated termination – the part is RoHS compliant per JST's standard material declaration.
