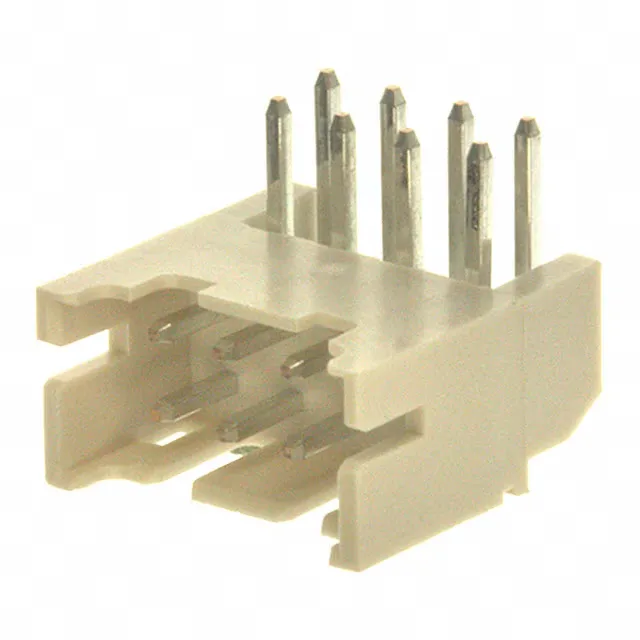

JST Sales America Inc. PHD series, Board to Cable/Wire, Header, Male Pin, 8 Positions, 2.00mm Pitch, Through Hole Right Angle, Tin Contacts, UL94 V-0
| Parameter | Value |
|---|---|
| Series | PHD |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C~85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.197\" (5.00mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 8 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.114\" (2.90mm) |
Mates with JST PHD series crimp receptacles (sold separately).
If the BOM calls for more circuits, the S12B-PHDSS carries 12 positions in the same 2-row, 2.00 mm pitch layout, same right-angle orientation, same 3 A rating. The only difference is the longer body to accommodate the extra four positions.
Yes, it is ROHS3 Compliant per JST's listing.
