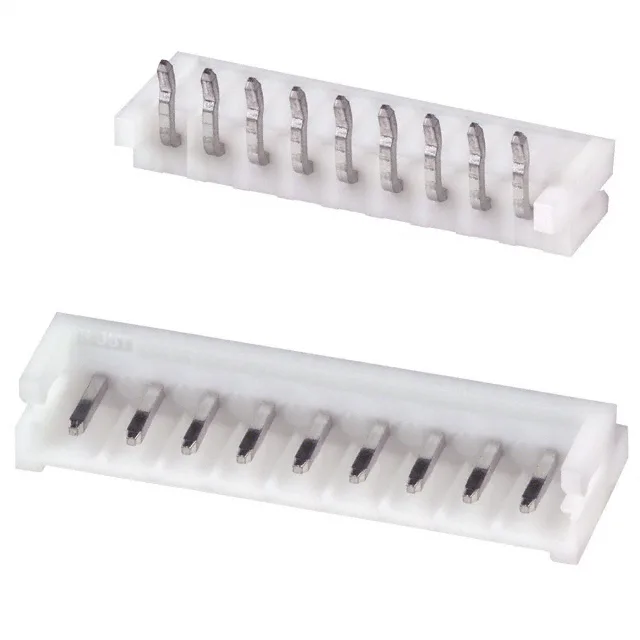

JST EH header, order code S9B-EH(LF)(SN), 9 positions, single row, 2.50 mm pitch, 3 A, 250 V, tin-plated mating contacts, through-hole right-angle, press-fit solder termination.
| Parameter | Value |
|---|---|
| Series | EH |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C~85°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.165\" (4.20mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 9 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.157\" (4.00mm) |
The S9B-EH(LF)(SN) is the 9-circuit member of JST's EH series board-to-wire header line, a shrouded 3-wall design with latch-lock fastening.
The S9B-EH(LF)(SN) mates with JST EH series crimp housings (e.g., EHR-9) and accepts the SEH-001T-P0.6 or equivalent tin-plated crimp terminal for 22–28 AWG wire.
The S8B-EH(LF)(SN) (8 positions) and S10B-EH(LF)(SN) (10 positions) share the same footprint and mating interface — select the position count to match the circuit count.
