The SM06B-SRSS-TB(LF)(SN): This JST SH/SR series header is a 6-position, single-row, surface-mount right-angle connector with a 1.00 mm pitch. It mates with JST SR-series crimp receptacles for board-to-cable/wire applications.
JST SH/SR series header, SM06B-SRSS-TB(LF)(SN), 6 positions, 1.00 mm pitch, surface mount right-angle, tin-plated male pins, 1 A, 50 V, shrouded 4-wall, push-pull fastening, UL94 V-0 natural nylon.
$0.7800Ref. price · indicative, final on quote
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | SH/SR |
| Gender | Male Pin |
| Mounting type | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 50V |
| Current rating | 1A |
| Operating temperature | -25°C~85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |

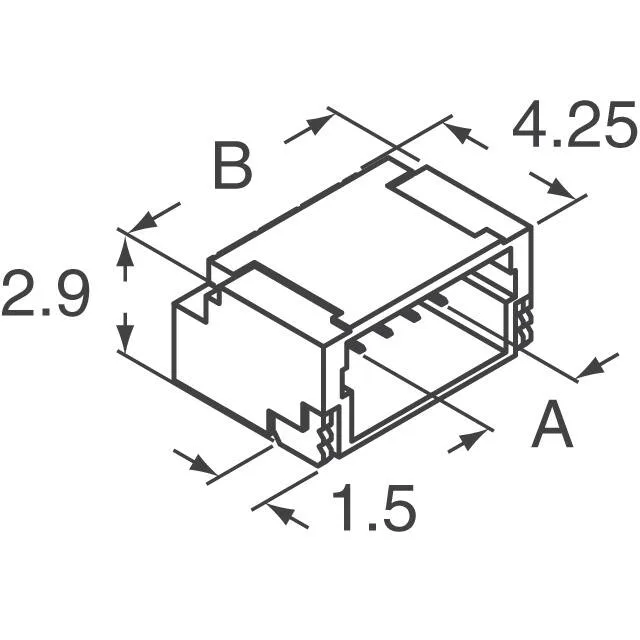

| Insulation height | 0.114\" (2.90mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.039\" (1.00mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
Where can I buy SM06B-SRSS-TB(LF)(SN) and how do I get a price?
Submit a request with your target quantity; we confirm availability and current pricing at quote time. No stock-holding claim is made — each order is sourced per your BOM.
Is SM06B-SRSS-TB(LF)(SN) surface mount?
Yes, it is a surface-mount, right-angle header. It solders directly to PCB pads on one side of the board, with the connector body sitting parallel to the board surface.
