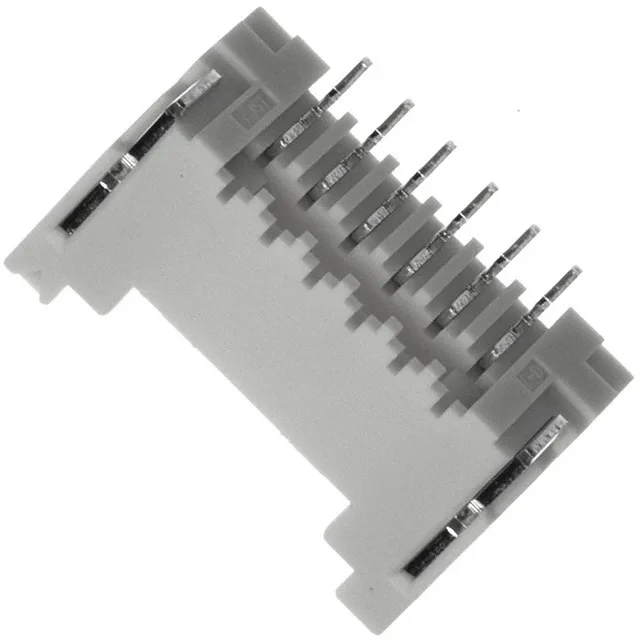

SM06B-ZESS-TB(LF)(SN) — JST product photo
JST

SM06B-ZESS-TB(LF)(SN) JST ZE Header 6 Pos 1.5mm SMT Right

MPNSM06B-ZESS-TB(LF)(SN)
Active

JST ZE series, Board to Cable/Wire, Header, 6 Positions, 1.50 mm Pitch, Surface Mount Right Angle, Locking Ramp, 2 A, 100 V, UL94 V-0, RoHS

$0.7900Ref. price · indicative, final on quote
SM06B-ZESS-TB(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SM06B-ZESS-TB(LF)(SN) Technical Specifications
ParameterValue
SeriesZE
GenderOuter Shroud Contact
Mounting typeSurface Mount, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating100V
Current rating2A
Operating temperature-25°C ~ 85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.228\" (5.80mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeRectangular
Rows1
Pitch0.059\" (1.50mm)
Positions6
Contact finish - postTin
Contact finish - matingTin

Product details

1.50 mm pitch, 6-position SMT header with locking ramp

The right-angle SMT orientation and solder retention features make it a compact board-edge solution for parallel cable exit, with the locking ramp securing the connection against vibration.

Right-angle SMT with solder retention

Active production, sourced per BOM quantity

Position count variants in the ZE series

The ZE series includes identical-form-factor headers at 5, 7, and 9 positions (SM05B-ZESS-TB(LF)(SN), SM07B-ZESS-TB(LF)(SN), SM09B-ZESS-TB(LF)(SN)) sharing the same 1.50 mm pitch, SMT right-angle orientation, locking ramp, and 2 A rating.

Frequently asked questions

What is the pitch of SM06B-ZESS-TB(LF)(SN)?

The pitch is 1.50 mm (0.059"), measured center-to-center between adjacent contacts.

Is SM06B-ZESS-TB(LF)(SN) RoHS compliant?

Yes, it is RoHS compliant as indicated by the (LF)(SN) suffix in the order code.

What is the mating connector for SM06B-ZESS-TB(LF)(SN)?

It mates with a ZE series receptacle (crimp-style, wire-to-board) of the same 6-position count and 1.50 mm pitch. The locking ramp on the header engages the latch on the receptacle housing.
