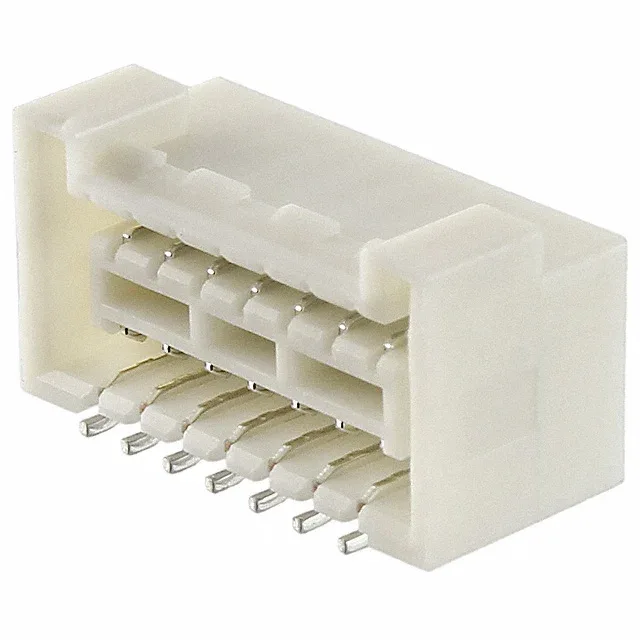

SM14B-ZPDSS-TF(LF)(SN) JST ZPD Header – 14 Pos, 1.5mm Pitch

MPNSM14B-ZPDSS-TF(LF)(SN)
Active

JST ZPD series, Board to Cable/Wire, 14 Positions, 1.50mm Pitch, 2A/100V, SMT Right-Angle, Shrouded - 4 Wall, Locking Ramp, UL94 V-0, Tin Contacts, RoHS

$1.4500Ref. price · indicative, final on quote
SM14B-ZPDSS-TF(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SM14B-ZPDSS-TF(LF)(SN) Technical Specifications
ParameterValue
SeriesZPD
GenderOuter Shroud Contact
Mounting typeSurface Mount, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating100V
Current rating2A
Operating temperature-25°C~85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.309\" (7.85mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR); Cut Tape (CT)
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeRectangular
Rows2
Pitch0.059\" (1.50mm)
Positions14
Contact finish - postTin
Contact finish - matingTin

Product details

Board-Space Fit and Current Ceiling

The 2 A per-contact rating is the thermal ceiling at the housing's UL94 V-0 polyamide material limit; at this pitch, the current density is constrained more by the contact beam cross-section than the tin plating.

Position Count Variants in the ZPD Series

The ZPD series offers 12-position (SM12B-ZPDSS-TF(LF)(SN)), 14-position (this part), and 16-position (SM16B-ZPDSS-TF(LF)(SN)) headers, all sharing the same 1.50 mm pitch, SMT right-angle footprint, and shrouded 4-wall design. All three are active and RoHS compliant, making BOM scaling across variants straightforward.

The SM14B-ZPDSS-TF(LF)(SN) is a shrouded header designed to mate with JST ZPD series crimp-style receptacle housings. Termination is SMT solder to the PCB — the tape-and-reel packaging (TR) supports automated pick-and-place assembly.

Frequently asked questions

What is the mating connector for SM14B-ZPDSS-TF(LF)(SN)?

It mates with JST ZPD series crimp-style receptacle housings.

Is SM14B-ZPDSS-TF(LF)(SN) RoHS compliant?

Yes, the (LF)(SN) suffix indicates RoHS compliance and tin-plated contacts.
