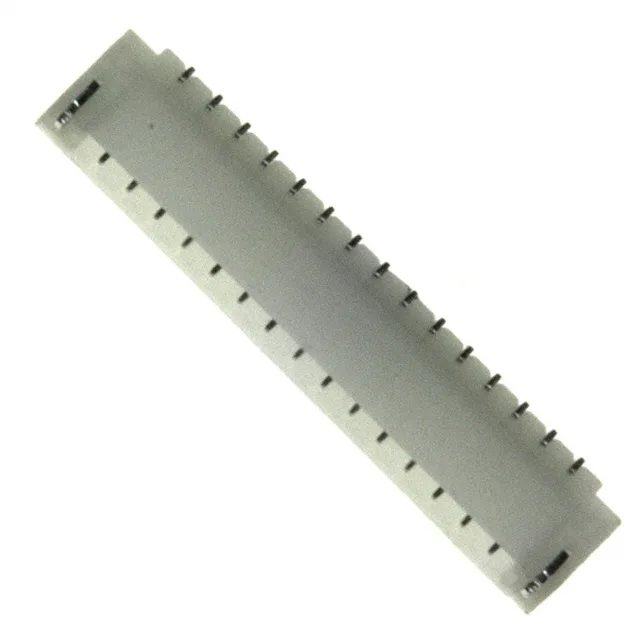

SM15B-SURS-TF(LF)(SN) — JST product photo
JST

JST SUR SM15B-SURS-TF(LF)(SN) Header, 15-Pos 0.80mm

MPNSM15B-SURS-TF(LF)(SN)
Active

JST SUR header, order code SM15B-SURS-TF(LF)(SN), 15 positions, single row, 0.80 mm pitch, 30 V, tin-plated mating contacts, surface-mount right-angle, solder termination.

$0.7694Ref. price · indicative, final on quote
SM15B-SURS-TF(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SM15B-SURS-TF(LF)(SN) Technical Specifications
ParameterValue
SeriesSUR
GenderOuter Shroud Contact
Mounting typeSurface Mount, Right Angle
Connector typeHeader
Fastening typePush-Pull
Voltage rating30V
Current rating0.2A, 0.5A
Operating temperature-25°C ~ 85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.069\" (1.75mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR)
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeRectangular
Rows1
Pitch0.031\" (0.80mm)
Positions15
Contact finish - postTin
Contact finish - matingTin

Product details

15-circuit SUR header

The SM15B-SURS-TF(LF)(SN) is the 15-circuit member of JST's SUR series of board-to-wire headers. It carries tin-plated mating contacts rated 0.2 A to 0.5 A at 30 V and mounts surface-mount right-angle with solder termination.

Shrouded 0.80 mm pitch

The 0.80 mm pitch and single-row layout suit dense board-to-wire routing; the 4-wall shrouding and push-pull fastening protect the mating interface against misalignment. The UL94 V-0 nylon housing and solder retention features support automated SMT assembly.
