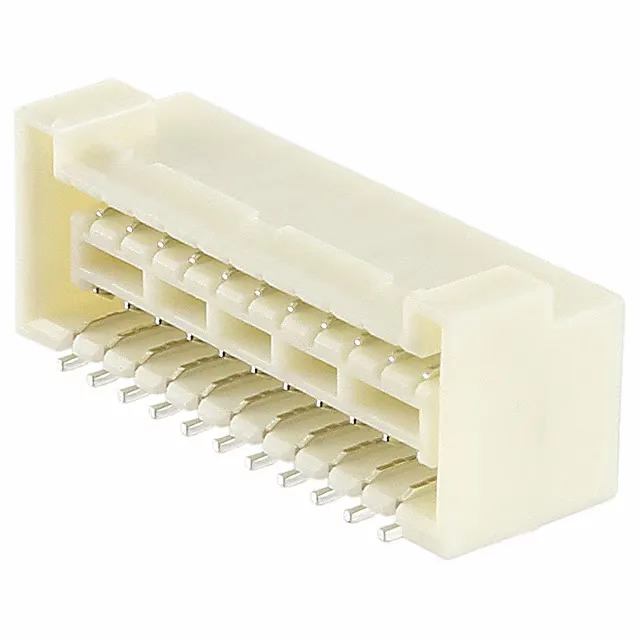

SM22B-ZPDSS-TF(LF)(SN) — JST product photo
JST

SM22B-ZPDSS-TF(LF)(SN) JST ZPD Header 22 Pos 1.5mm SMT RA

MPNSM22B-ZPDSS-TF(LF)(SN)
Active

JST ZPD series, SM22B-ZPDSS-TF(LF)(SN), 22-position dual-row header, 1.50 mm pitch, surface-mount right-angle, shrouded 4-wall, tin-plated contacts, 2 A, 100 V, UL94 V-0, RoHS compliant.

$1.9900Ref. price · indicative, final on quote
SM22B-ZPDSS-TF(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SM22B-ZPDSS-TF(LF)(SN) Technical Specifications
ParameterValue
SeriesZPD
GenderOuter Shroud Contact
Mounting typeSurface Mount, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating100V
Current rating2A
Operating temperature-25°C~85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.309\" (7.85mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR); Cut Tape (CT)
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeRectangular
Rows2
Pitch0.059\" (1.50mm)
Positions22
Contact finish - postTin
Contact finish - matingTin

Product details

Mating Half and Harness Integration

The board-to-cable/wire style means the harness side uses discrete crimp terminals — wire gauge and terminal part numbers are specified in the JST ZPD product drawing. The outer shroud contact type indicates the signal path is through the shroud walls rather than individual pin tips — confirm terminal compatibility with the intended receptacle before committing the harness design.

The same ZPD series offers 20-position (SM20B-ZPDSS-TF(LF)(SN)) and 24-position (SM24B-ZPDSS-TF) variants with identical pitch, current rating, mounting, and plating.

Frequently asked questions

What is the mating connector for SM22B-ZPDSS-TF(LF)(SN)?

It mates with the corresponding ZPD series crimp receptacle housing. Confirm the exact receptacle part number from the JST ZPD product drawing for your wire gauge and terminal requirements.

Is SM22B-ZPDSS-TF(LF)(SN) RoHS compliant?

Yes, the (LF)(SN) suffix indicates RoHS compliance and tin-plated contacts.

What is the closest alternative to SM22B-ZPDSS-TF(LF)(SN) with more or fewer positions?

The same ZPD series includes a 20-position variant (SM20B-ZPDSS-TF(LF)(SN)) and a 24-position variant (SM24B-ZPDSS-TF). All share the same 1.50 mm pitch, 2 A rating, SMT right-angle mounting, and tin plating — only the circuit count differs.
