JST Sales America Inc., SHD series, 30-position, 1.00 mm pitch, surface mount right-angle header, gold-plated male pins, shrouded 4-wall, RoHS compliant.
| Parameter | Value |
|---|---|
| Series | SHD |
| Gender | Male Pin |
| Mounting type | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 50V |
| Current rating | 1A |
| Operating temperature | -25°C~85°C |
| Contact material | Phosphor Bronze |
| Insulation color | Natural |

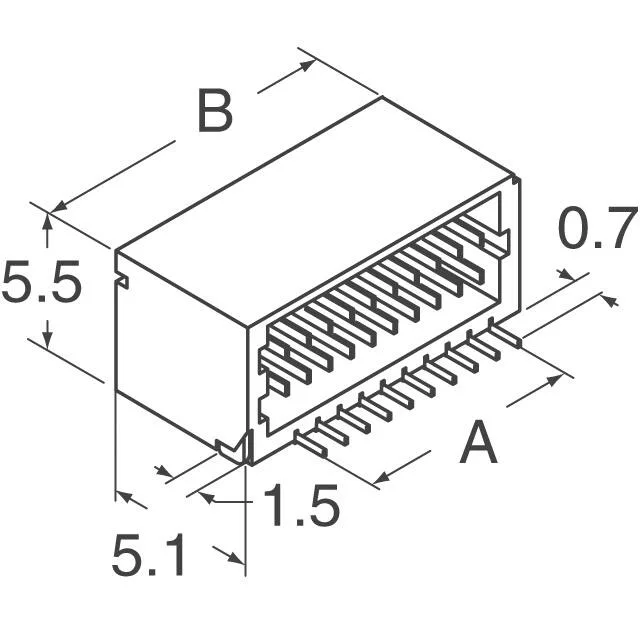

| Insulation height | 0.217\" (5.51mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Pick and Place, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.039\" (1.00mm) |
| Positions | 30 |
| Contact finish - mating | Gold |
The SM30B-SRDS-G-TF(LF)(SN): The Pick and Place feature (flat top surface) allows automated assembly. Insulation height of 0.217" (5.51 mm) gives clearance for the mating connector body. UL94 V-0 rated glass-filled nylon housing ensures flame retardancy for equipment inside an enclosure.
This header mates with a JST SHD series receptacle housing (crimp terminal type) of the same 30-position, 1.00 mm pitch layout. The push-pull fastening type and shrouded 4-wall design ensure a secure, keyed connection.
Yes, it is RoHS compliant per the directive, with no restricted substances above threshold limits.
