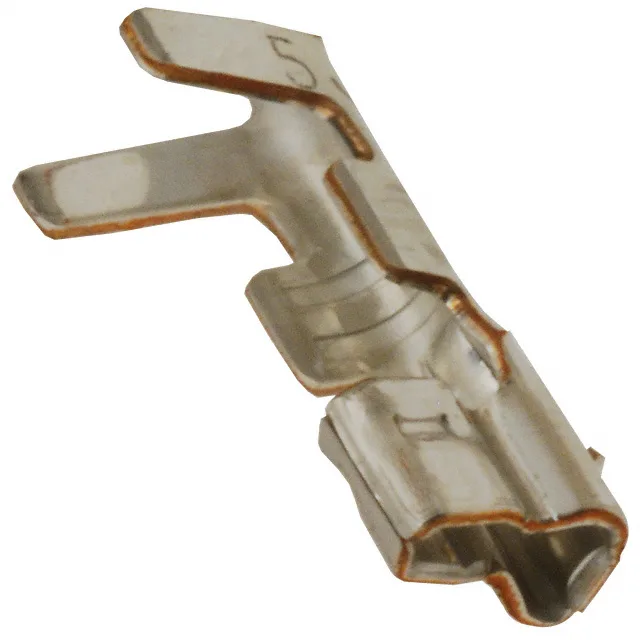

SPH-002T-P0.5L — JST product photo
JST

JST SPH-002T-P0.5L Crimp Socket, 24-28 AWG, Tin, PH Series

MPNSPH-002T-P0.5L
Active

JST PH series crimp socket, order code SPH-002T-P0.5L, 24-28 AWG, tin-plated contact, crimp termination, Tape & Reel packaging, ROHS3 compliant.

$0.1000Ref. price · indicative, final on quote
SPH-002T-P0.5L datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SPH-002T-P0.5L Technical Specifications
ParameterValue
SeriesPH
Wire gauge24-28 AWG
PackageTape & Reel (TR) Cut Tape (CT)
Pin or socketSocket
Contact finishTin
Contact terminationCrimp

Product details

PH series crimp socket for 24-28 AWG

The SPH-002T-P0.5L is a tin-plated crimp socket in JST's PH series, accepting 24-28 AWG wire. It terminates via standard crimp tooling and is supplied in Tape & Reel (TR) and Cut Tape (CT) packaging for automated or manual assembly.

Frequently asked questions

Will SPH-002T-P0.5L drop into a panel wired for SPH-002T-P0.5S?

Both are PH-series tin-plated sockets with the same crimp termination. The SPH-002T-P0.5S accepts 24-30 AWG, while the SPH-002T-P0.5L accepts 24-28 AWG — the difference is the wire gauge range, not the housing fit. They are functionally interchangeable in the same PH housing for wire sizes within the overlap.
