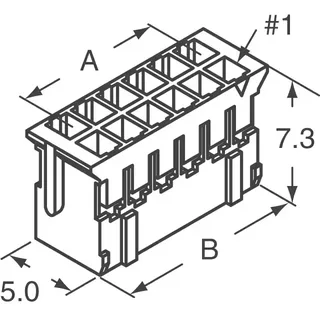

PHDR-12VS
JST
12-25°C ~ 85°CContacts Not Included
Ref. price$0.3500
Lead time on requestGet quote ›
JST PHDR Series
12 variants · JST
About the JST PHDR Series
The JST PHDR Series series groups 12 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of Natural, connector type of Receptacle and contact termination of Crimp. Variants differ by operating temperature and positions, so you can match the exact operating temperature your application requires using the selection guide below. All listed JST PHDR Series part numbers are active and orderable.
Select a variant by
- Operating temperature
- -25°C ~ 85°C · -25°C~85°C
- Positions
- 8 · 10 · 12 · 14 · 16 · 20 · 22 · 24 · 26 · 28 · 30 · 34
Shared specifications
- Color
- Natural
- Connector type
- Receptacle
- Contact termination
- Crimp
- Fastening type
- -
- Features
- -
- Gender
- Female Socket
- Mounting type
- Free Hanging (In-Line)
- Package
- Bulk
- Pitch
- 0.079\" (2.00mm)
- Row spacing
- 0.079\" (2.00mm)
- Rows
- 2
Variant comparison
| Parameter | PHDR-12VS | PHDR-24VS | PHDR-10VS | PHDR-14VS | PHDR-16VS | PHDR-20VS |
|---|---|---|---|---|---|---|
| Operating temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C~85°C | -25°C ~ 85°C | -25°C~85°C |
| Positions | 12 | 24 | 10 | 14 | 16 | 20 |
Request a quote on any JST PHDR Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the JST PHDR Series variants differ?
- JST PHDR Series part numbers differ by operating temperature and positions. Use the selection guide above to pick by operating temperature.
- How many JST PHDR Series part numbers are listed?
- 12 JST PHDR Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for JST PHDR Series?
- Request a quote (RFQ) for any JST PHDR Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
