Kycon, Inc. GSX-N-88
MPNGSX-N-88
Active

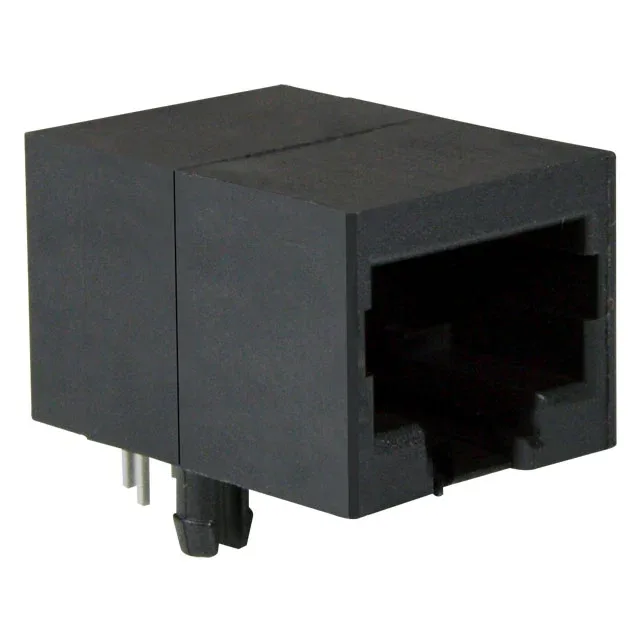

MODJACK RT< 8P8C BLACK ROHS COMP
$1.41Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesGSX
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | GSX |
| Mounting | Through Hole |
| Connector type | Jack |
| Operating temperature | -40°C ~ 85°C |
| LED color | Does Not Contain LED |
| Contact material | Phosphor Bronze |
| Housing material | Polybutylene Terephthalate (PBT) |
| Package | Tray |
| Features | Board Lock |
| Shielding | Unshielded |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Tab direction | Down |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | Flash |
| Number of positions (Contacts) | 8p8c (RJ45, Ethernet) |
