Kycon, Inc. K31X-B25S-N
MPNK31X-B25S-N
Active

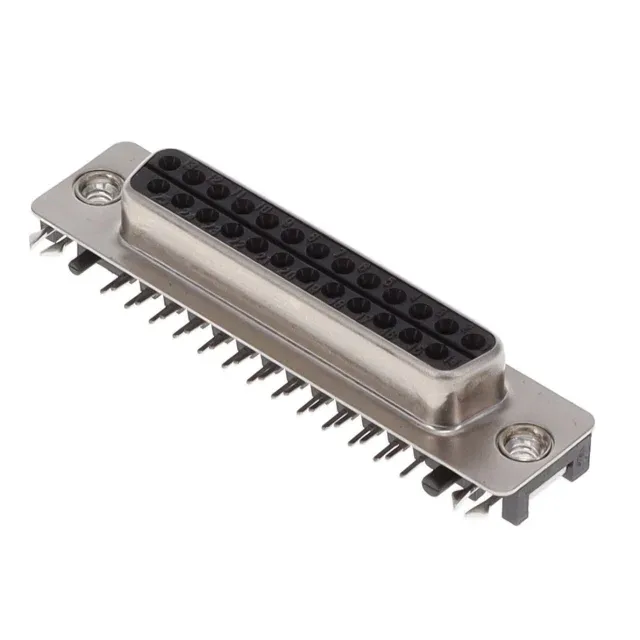

CONN D-SUB RCPT 25P SMD R/A SLDR
$5.25Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesK31X
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | K31X |
| Type | Signal |
| Mounting | Surface Mount, Right Angle; Through Hole |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 300VAC |
| Current rating | 5A |
| Shell size, connector layout | 3 (DB, B) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell material, finish | Steel, Tin Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Board Guide, Board Lock |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 2 |
| Backset spacing | 0.071\" (1.80mm) |
| Positions | 25 |
| Contact finish thickness | Flash |
