Kycon, Inc. K42X-B25P/S-A4N
MPNK42X-B25P/S-A4N
Active

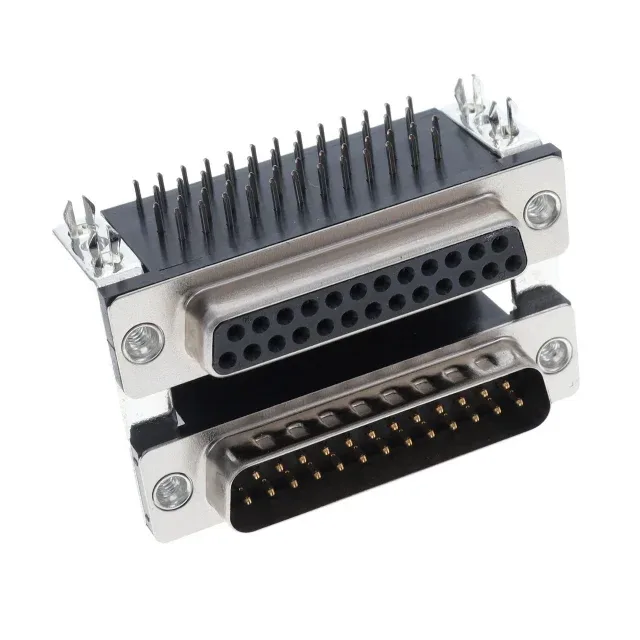

CONN D-SUB PLUG/RCPT 25P RA SLDR
$15.04Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesK42X
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | K42X |
| Type | Signal |
| Mounting | Through Hole, Right Angle |
| Connector type | Plug, Male Pins; Receptacle, Female Sockets |
| Voltage rating | 30V |
| Current rating | 1.2A |
| Shell size, connector layout | 3 (DB, B); 3 (DB, B) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Brass, Phosphor Bronze |
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell material, finish | Steel, Nickel Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Lock, Grounding Indents, Mounting Brackets |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 2, 2 |
| Backset spacing | 0.318\" (8.08mm) |
| Positions | 25, 25 |
| Contact finish thickness | Flash |
