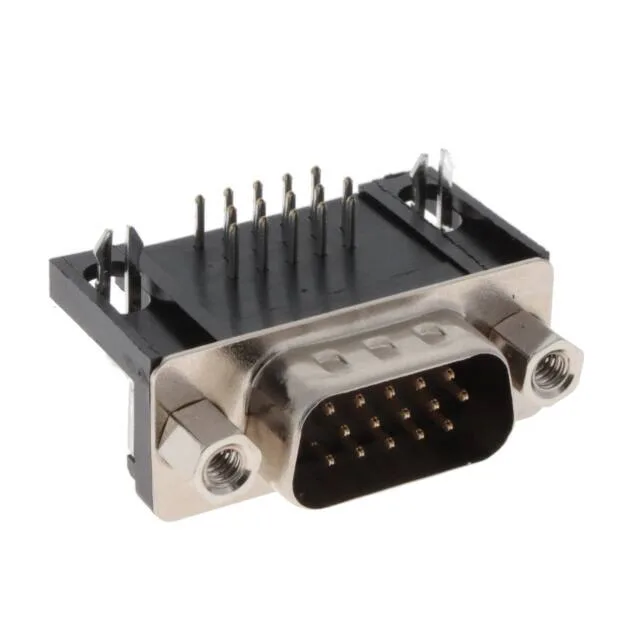

Kycon, Inc. K66X-E15P-NJ
MPNK66X-E15P-NJ
Active
CONN D-SUB HD PLUG 15P R/A SLDR
$4.73Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesK66X
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | K66X |
| Type | Signal |
| Mounting | Through Hole, Right Angle |
| Connector type | D-Sub, High Density |
| Voltage rating | 29VAC |
| Current rating | 1.5A |
| Shell size, connector layout | 1 (DE, E) High Density |
| Operating temperature | -55°C ~ 75°C |
| Color | Black |
| Contact material | Brass |
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell material, finish | Steel, Nickel Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Lock, Grounding Indents |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Mating Side, Female Screwlock (4-40) |
| Rows | 3 |
| Backset spacing | 0.350\" (8.89mm) |
| Positions | 15 |
| Contact finish thickness | Flash |
