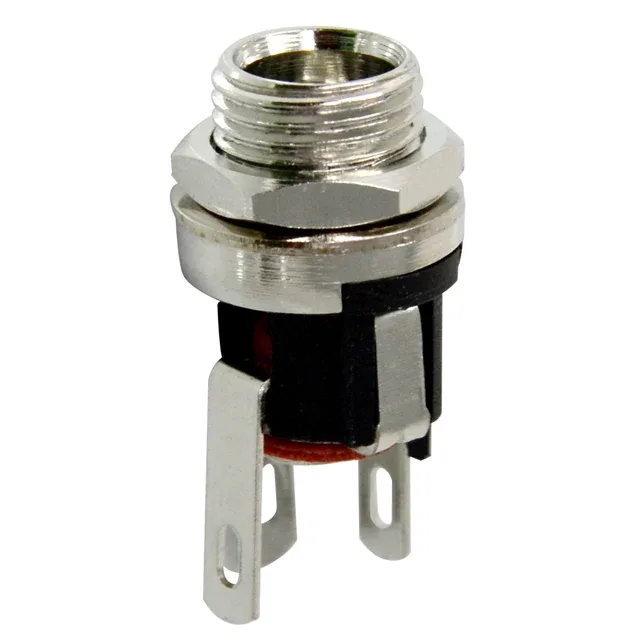

Kycon, Inc. KLDPLX-0202-A
MPNKLDPLX-0202-A
Active
DC POWER JACK 2.0MM PNLMT SOLDER
$2.01Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesKLDPLX
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KLDPLX |
| Mounting | Panel Mount |
| Connector type | Jack |
| Voltage - rated | 24VDC |
| Current rating | 3 A |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -25°C ~ 70°C |
| Body color | Silver, Black |
| Body material | Brass |
| Contact material | Brass, Phosphor Bronze |
| Contact material - plating | Nickel, Tin |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Gender | Male |
| Package | Bag |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Connector size | M8x0.75 |
| Internal switch | Single Switch |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 2.00mm ID (0.079\"), 5.50mm OD (0.217\") |
