Kycon, Inc. KLDVX-SMT-02-A-GP-TR

Kycon, Inc. KLDVX-SMT-02-A-GP-TR

MPN KLDVX-SMT-02-A-GP-TR
Active

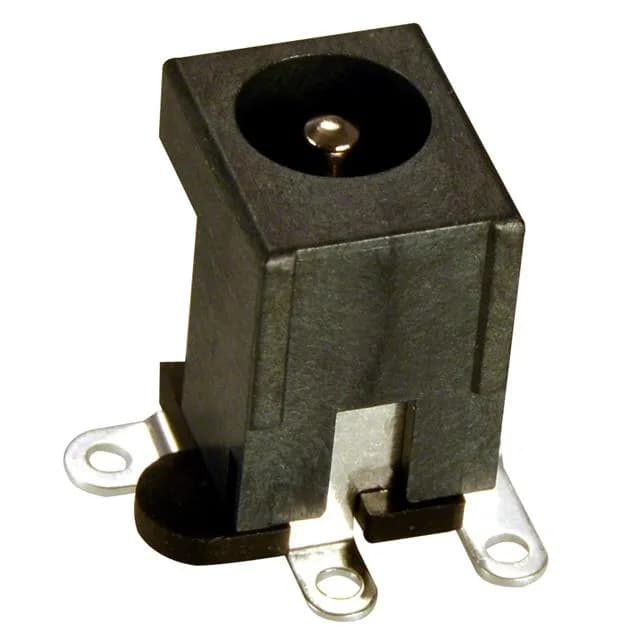

POWER JACK 2.0 MM DIA VERTICAL S

$1.4800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesKLDVX
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

KLDVX-SMT-02-A-GP-TR key specifications
ParameterValue
SeriesKLDVX
MountingSurface Mount
Connector typeJack
Voltage - rated16VDC
Current rating3.5 A
Mounting featureFlange
Operating temperature-25°C ~ 85°C
Body colorBlack
Contact materialCopper Alloy
Insulation colorBlack
Contact material - platingSilver
Material flammability ratingUL94 V-0

All specifications

KLDVX-SMT-02-A-GP-TR additional specifications
ParameterValue
GenderMale
PackageTape & Reel (TR) Cut Tape (CT)
ShieldingUnshielded
TerminationSolder Eyelet
Actual diameter0.079\" (2.00mm ID), 0.248\" (6.30mm OD)
Internal switchSingle Switch, Normally Closed
Number of positions (Contacts)2 Conductors, 3 Contacts
Industry recognized mating diameter2.50mm ID (0.098\"), 5.50mm OD (0.217\")
MPN
KLDVX-SMT-02-A-GP-TR
