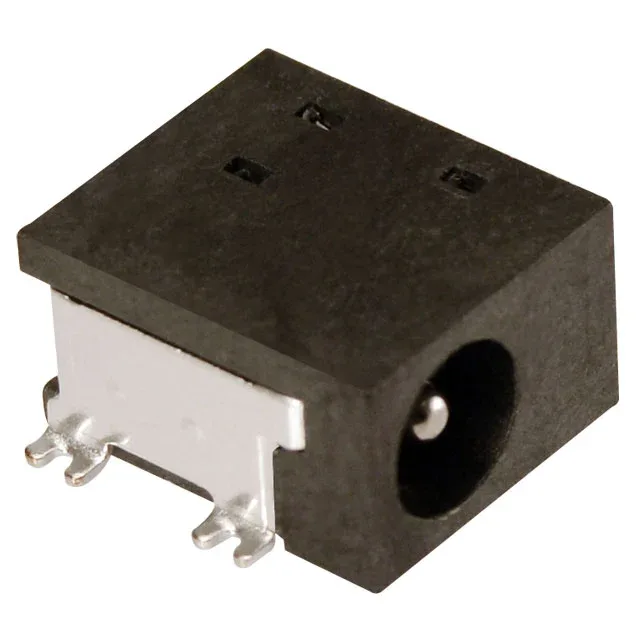

Kycon, Inc. KLDX-SMT-0201L-BTR
MPNKLDX-SMT-0201L-BTR
Active
CONN PWR JACK MINI 1.3MM SMT
$1.88Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesKLDVX-SMT
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KLDVX-SMT |
| Mounting | Surface Mount, Right Angle |
| Connector type | Jack |
| Voltage - rated | 24VDC |
| Current rating | 3 A |
| Operating temperature | -25°C ~ 85°C |
| Body color | Black |
| Contact material | Copper Alloy |
| Housing material | Thermoplastic |
| Contact material - plating | Silver |
| Material flammability rating | UL94 V-0 |
| Gender | Male |
All specifications
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide |
| Shielding | Unshielded |
| Termination | Solder |
| Actual diameter | 0.051\" (1.30mm ID), 0.154\" (3.90mm OD) |
| Internal switch | Single Switch, Normally Closed |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 1.30mm ID (0.051\"), 3.50mm OD (0.138\") |
