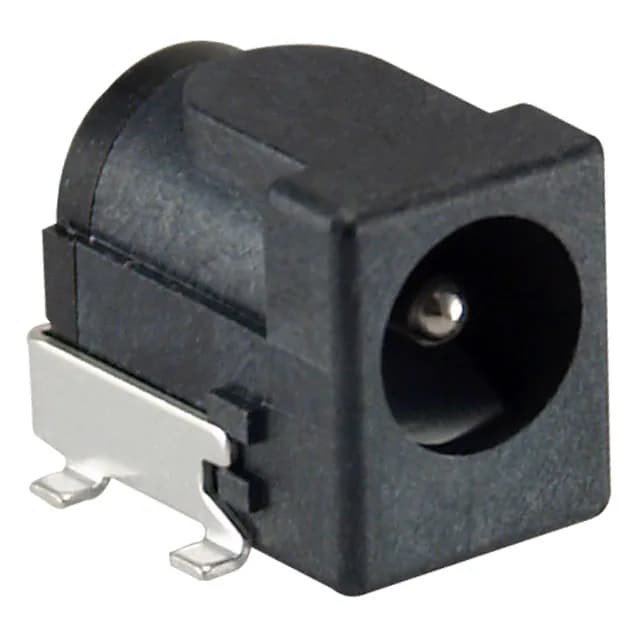

Kycon, Inc. KLDX-SMT2-0202-ATR-1
MPNKLDX-SMT2-0202-ATR-1
Active
CONN PWR JACK 2X5.5MM SMT
$2.3500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesKLDX-SMT2
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KLDX-SMT2 |
| Mounting | Surface Mount, Right Angle |
| Connector type | Jack |
| Voltage - rated | 24VDC |
| Current rating | 3.5 A |
| Operating temperature | -25°C ~ 65°C |
| Body color | Black |
| Contact material | Brass, Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP) |
| Contact material - plating | Silver |
| Material flammability rating | UL94 V-0 |
| Gender | Male |
All specifications
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide, Solder Retention |
| Shielding | Unshielded |
| Termination | Solder |
| Actual diameter | 0.079\" (2.00mm ID), 0.256\" (6.50mm OD) |
| Internal switch | Single Switch, Normally Closed |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 2.00mm ID (0.079\"), 5.50mm OD (0.217\") |
