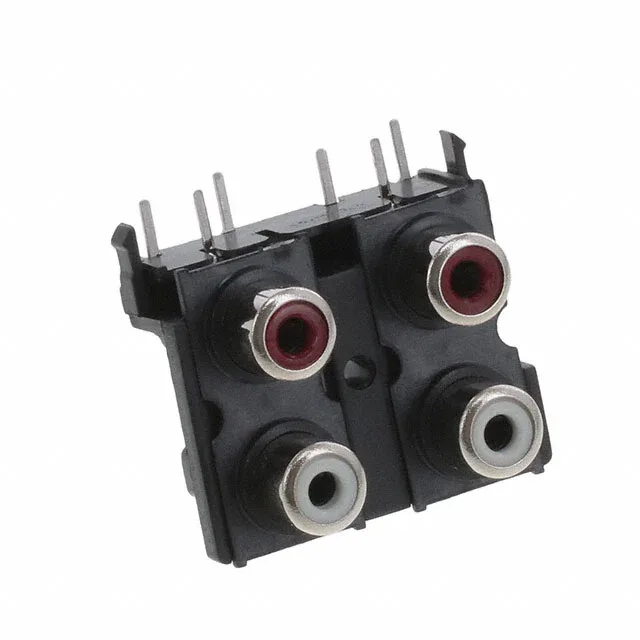

Kycon, Inc. KLP42X-61-WW/RR
MPNKLP42X-61-WW/RR
Active
STK RCA JACK 2X2 WHT WHT OVR RED
$2.71Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesKLP42X
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KLP42X |
| Mounting | Through Hole, Right Angle |
| Connector type | Phono (RCA) Jack |
| Voltage - rated | 16VDC |
| Current rating | 300 mA |
| Operating temperature | -20°C ~ 60°C |
| Body color | Silver, Black |
| Body material | Brass |
| Contact material | Brass |
| Housing material | Polybutylene Terephthalate (PBT) |
| Insulation color | Red, White |
| Contact material - plating | Nickel, Tin |
All specifications
| Parameter | Value |
|---|---|
| Gender | Female |
| Package | Tray |
| Features | Board Lock |
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Mono |
| Actual diameter | 0.132\" (3.35mm ID), 0.327\" (8.30mm OD) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 4 Sets of 2 Conductors, 6 Contacts |
| Industry recognized mating diameter | 3.20mm ID, 9.00mm OD (RCA) |
