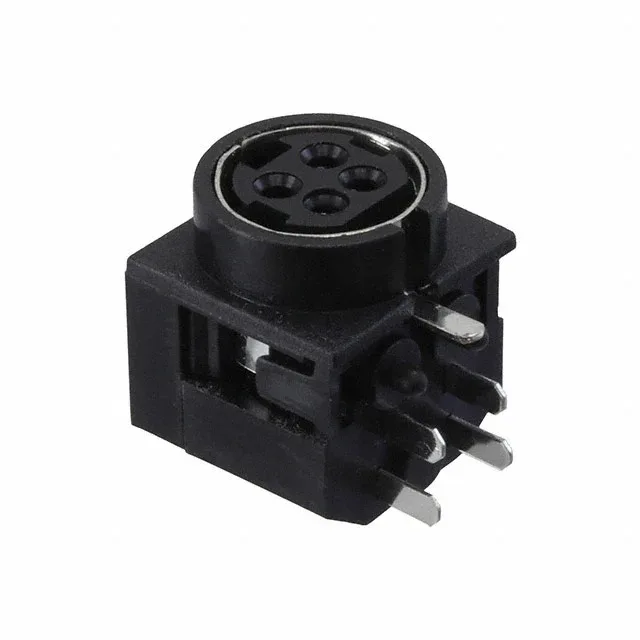

Kycon, Inc. KPJX-4S
MPNKPJX-4S
Active
CONN JACK FMALE 4POS TIN SOLDER
$2.24Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesKPJX
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KPJX |
| Mounting | Through Hole, Right Angle |
| Connector type | Jack, Female Sockets |
| Fastening type | Snap-In |
| Voltage rating | 48VDC |
| Current rating | 7.5A |
| Operating temperature | -40°C ~ 75°C |
| Color | Black |
| Shell material | Polybutylene Terephthalate (PBT) |
| Insert material | Polybutylene Terephthalate (PBT) |
| Contact material | Brass |
| Primary material | Plastic |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Guide |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder |
| Applications | Digital, Power |
| Positions | 4 (Power) |
| Shell size - insert | Power DIN |
| Contact finish - mating | Tin |
